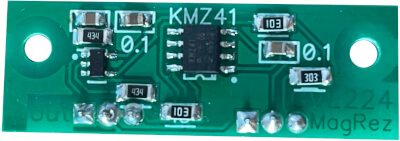

The MagRez analog non-contact magnetic sensor is based on the KMZ41 microcircuit, it reacts to a change in the direction of the magnetic field.

Ring magnets with diametral magnetization are ideal for sensor operation. It is more convenient to install such magnets on the end of the mechanics axis on which MagRez is installed. Although other magnets can be used, the main thing is to install them correctly.

MagRez works both from 3.3 volts and from 5 volts.

MagRez can operate at mechanical deflection angles from +-10 degrees to +-39 degrees. These angles are set during the soldering of the sensors by selecting the appropriate resistors on the board. The more accurately you set the deflection angles on MagRez, the closer to the maximum number of readings per controller axis MagRez will give.

MagRez is connected to the controller via three wires, the shorter the wires, the better. Use shielded wires whenever possible.

Sensor size 41mm*19mm. Mounting holes are on the same axis with the microcircuit (KMZ41) - 34 mm - magnetic field sensor (the center of the axis of mechanics, magnet) at an equal distance from the microcircuit (KMZ41).

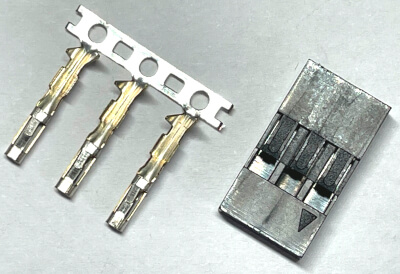

MagRez is completed (included in the price) with a magnet and a BLS-3 connector.

Detailed information in the instructions /eng, rus/ for the MagRez.

If necessary, you can complete the MagRez with a set of controller for an additional fee.

Digital contactless magnetic sensor TLE5010 (5011), operates via SPI interface, responds to changes in magnetic field direction.

Ring magnets with diametrical magnetization are ideal for the sensor. These magnets are most conveniently installed at the end of the mechanical axis on which the MagRez is mounted. Although other magnets can be used, the key is to install them correctly.

TLE5010 works both from 3.3 volts and from 5 volts.

The TLE5010 is connected to the controller via six wires.

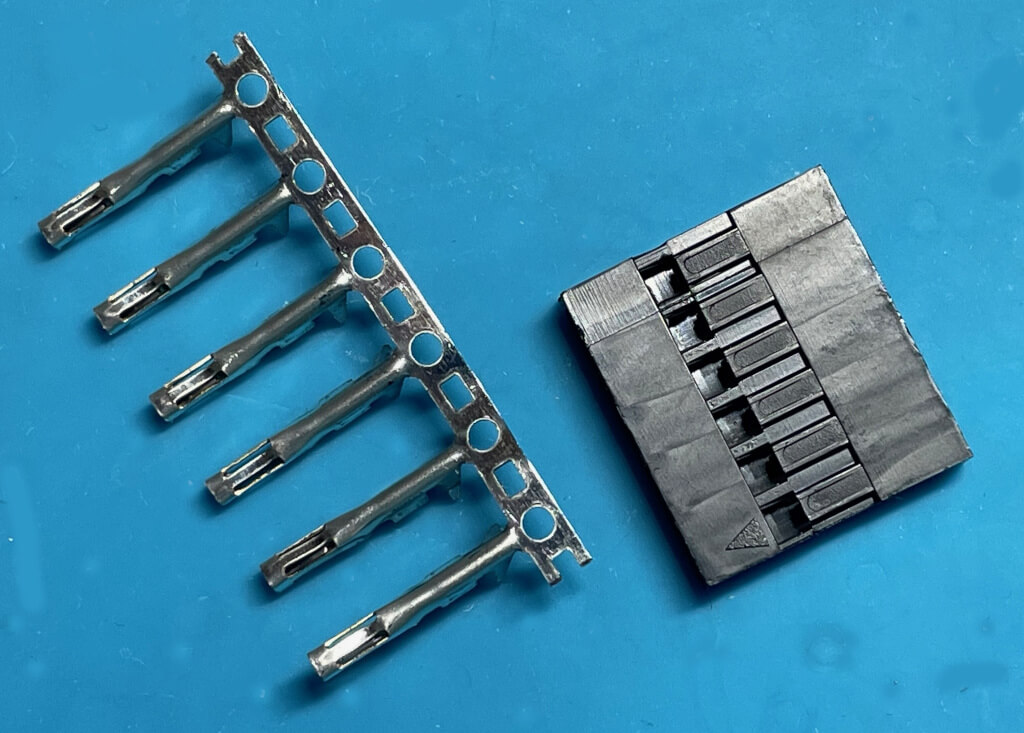

TLE5010 is completed (included in the price) with a magnet and a BLS-6 connector.

Detailed information in the instructions ...
