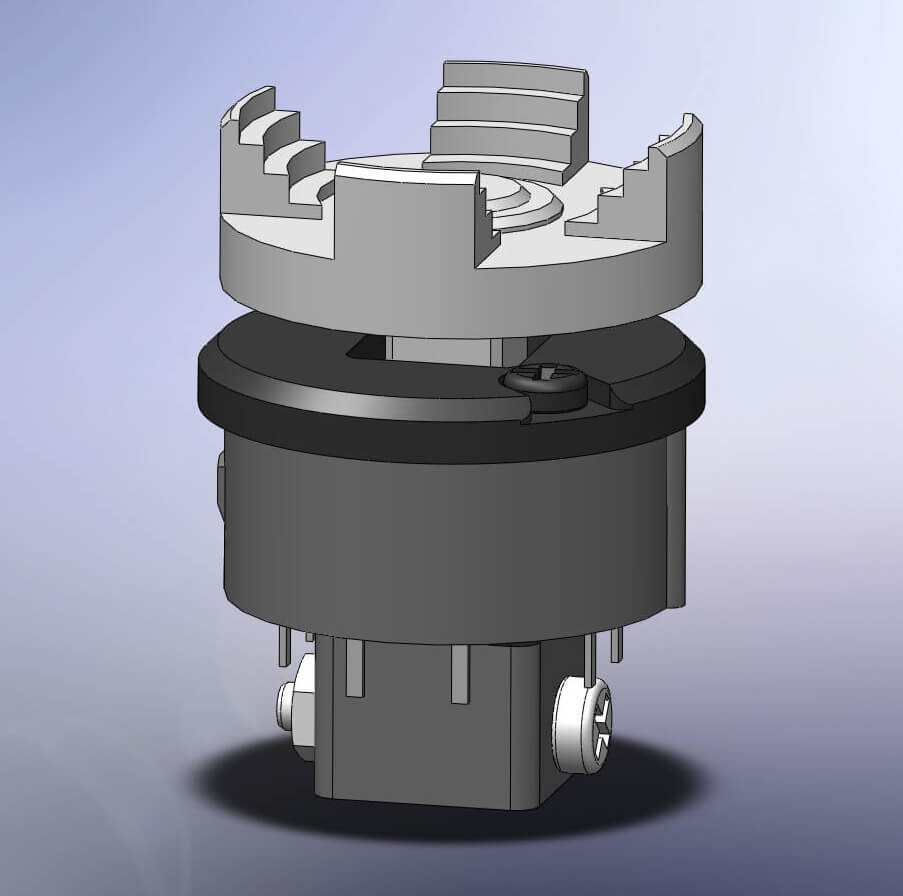

HAT four position switch (four physical buttons).
"cap" you can use any of my range of "caps".
I can make a "cap" according to your sketch.

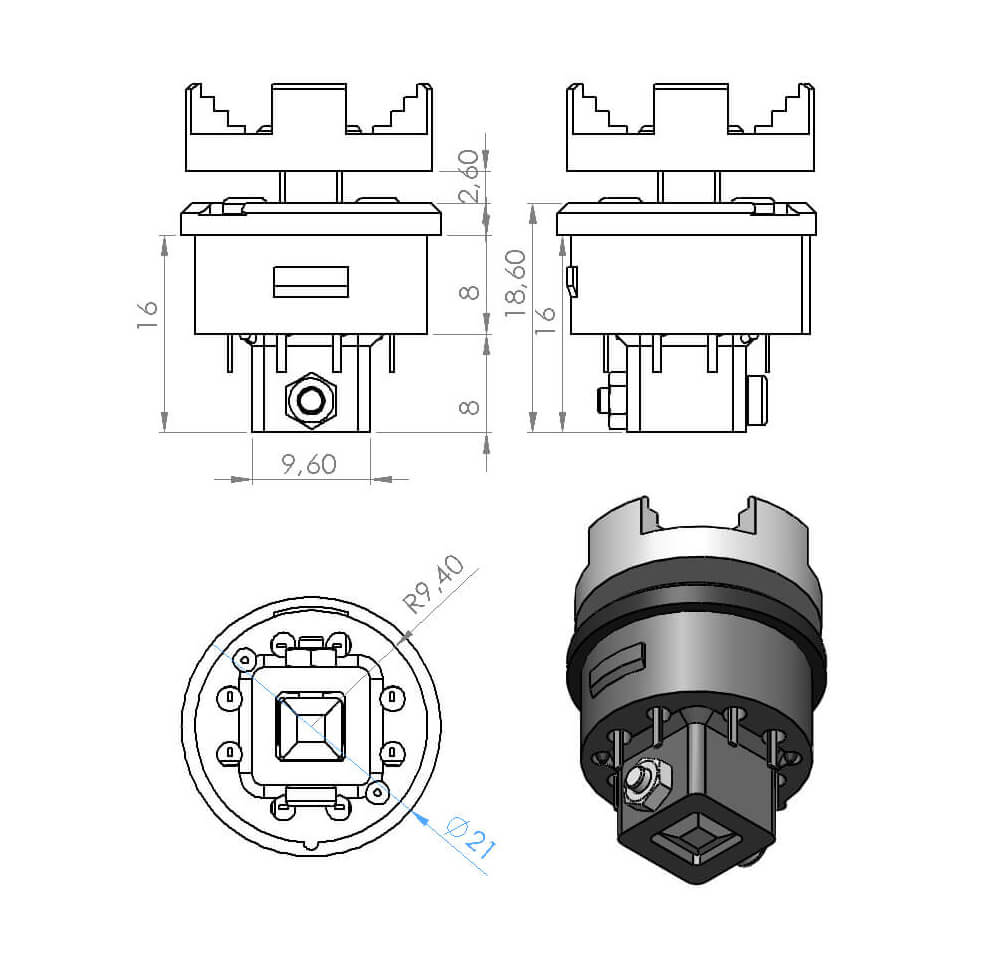

Drawing of a HAT with basic dimensions...
Video HAT ...
Video device with HAT installed ...
Price:
6.95 euro

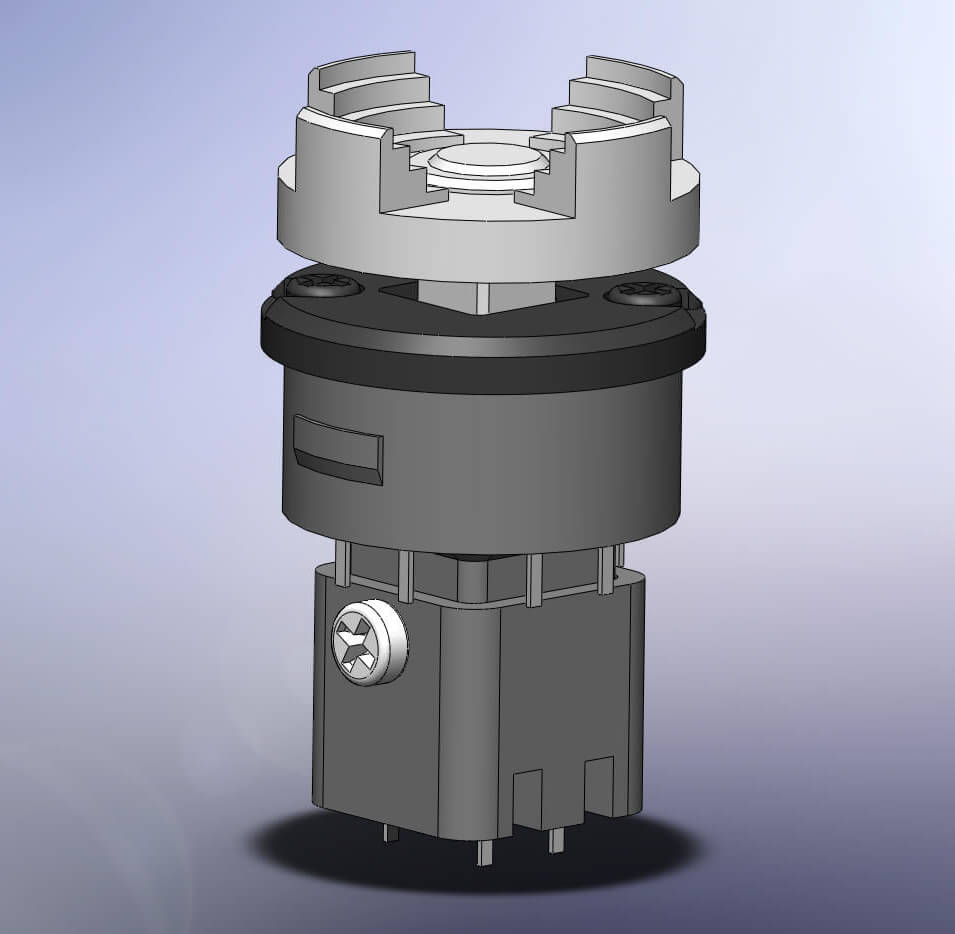

HAT switch for four positions and additionally "central" pressing (five physical buttons).
"cap" you can use any of my range of "caps".
I can make a "cap" according to your sketch.

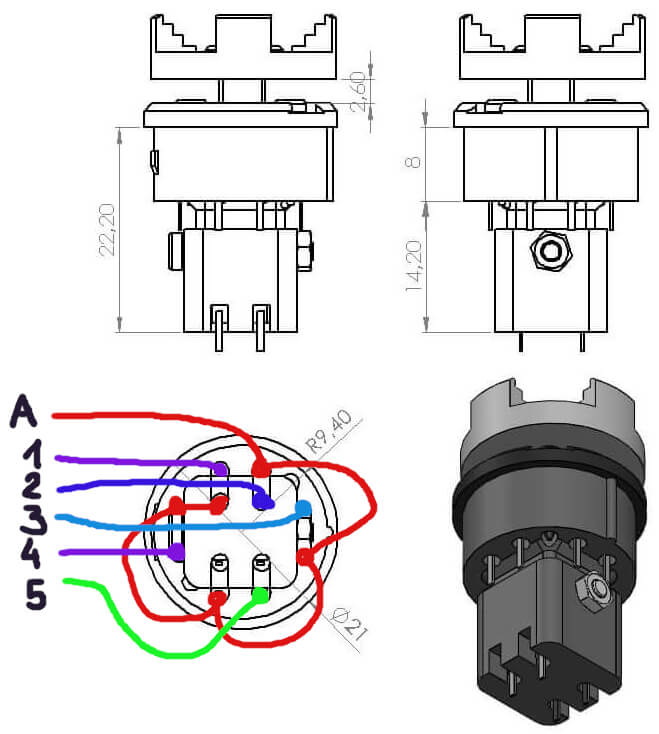

Drawing of a HAT with basic dimensions...
Video HAT ...
Video device with HAT installed ...
Price:
7.95 euro

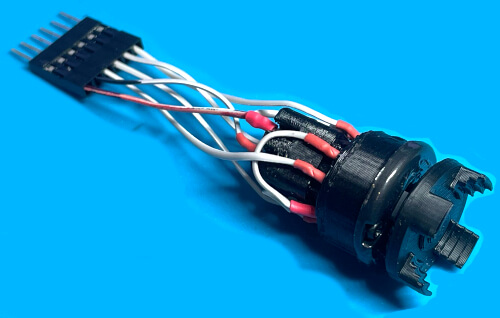

Wires with connector for HAT connection.
The number of wires depends on the number of buttons in the XAT.
The BLS connector may not be solid, but consist of several parts and not with pins, but with holes.
Video HAT ...
Video device with HAT installed ...

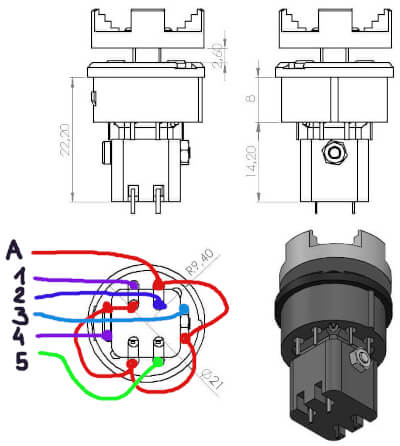

Size and connection of wires.
Price:
1.95 euro
"Cap" № 1
"Cap" № 2
"Cap" № 3
"Cap" № 4
"Cap" № 5
"Cap" № 6
"Cap" № 7
"Cap" № 8
