GVL224 mechanics on bearings for installing the “Universal” lever, 2 mm thick.

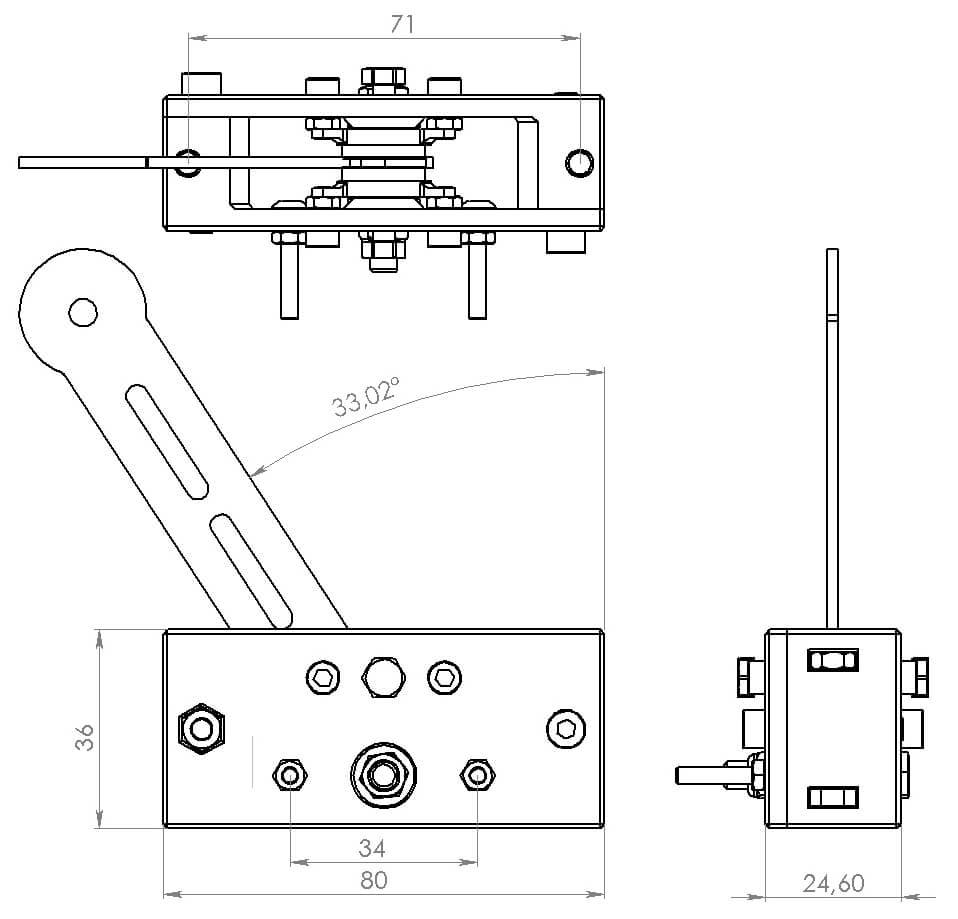

Mechanics drawing with "dimensions".

Mechanics on bearings, lever with fixed three positions.
From 2 to 9 fixed lever positions are possible. As an “axis” from 2 to 9 positions.
As well as the “buttons” from 2 to 3 positions.
Handles may have a different shape and color.
The weight of such mechanics is 103 grams.

Mechanics base drawing with "dimensions".

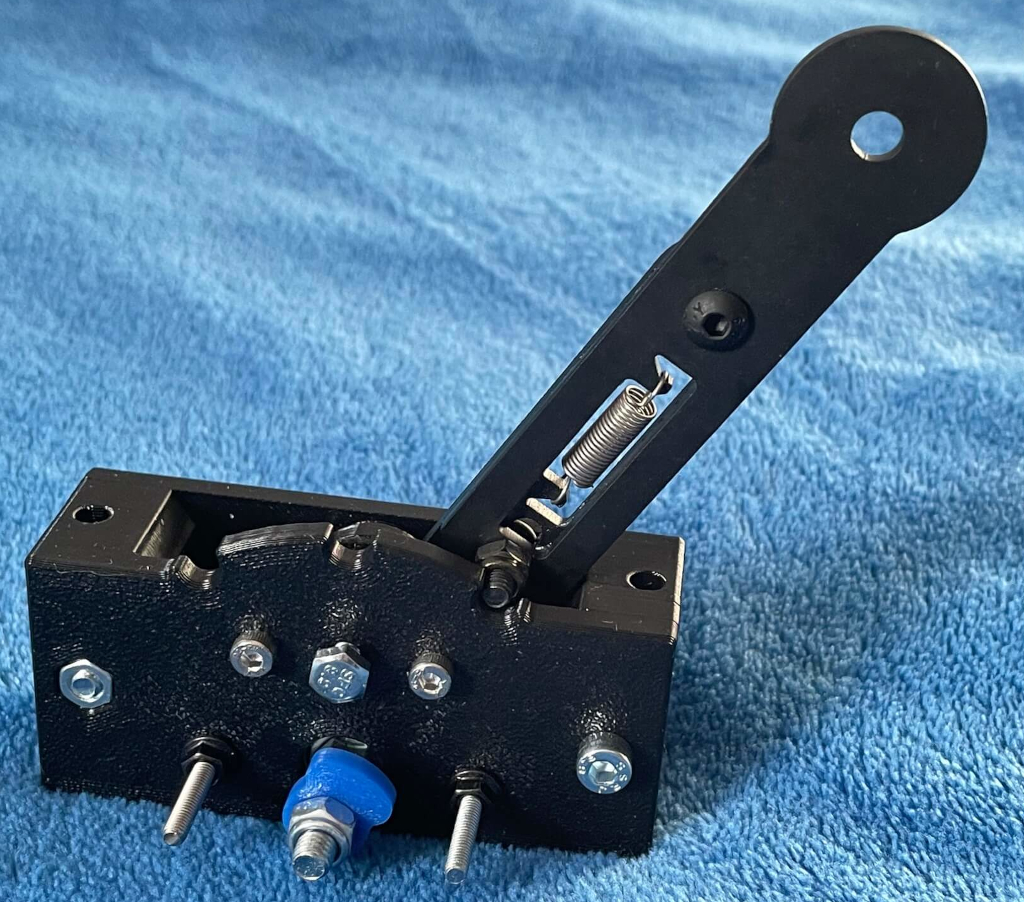

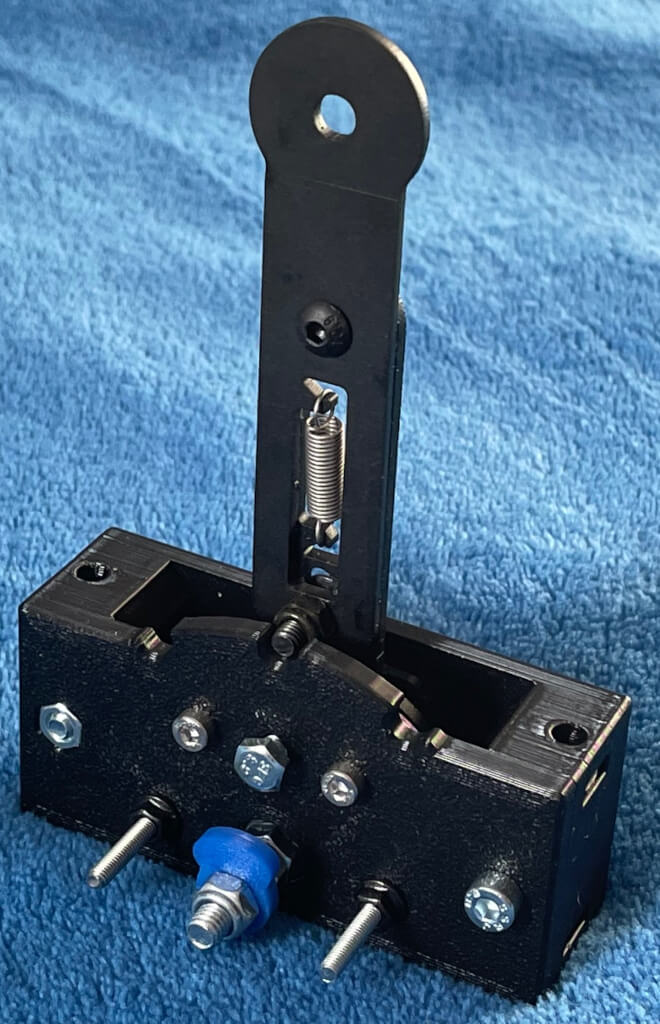

Mechanics video "Fixation" ...


New Mechanics video "Fixation" ...

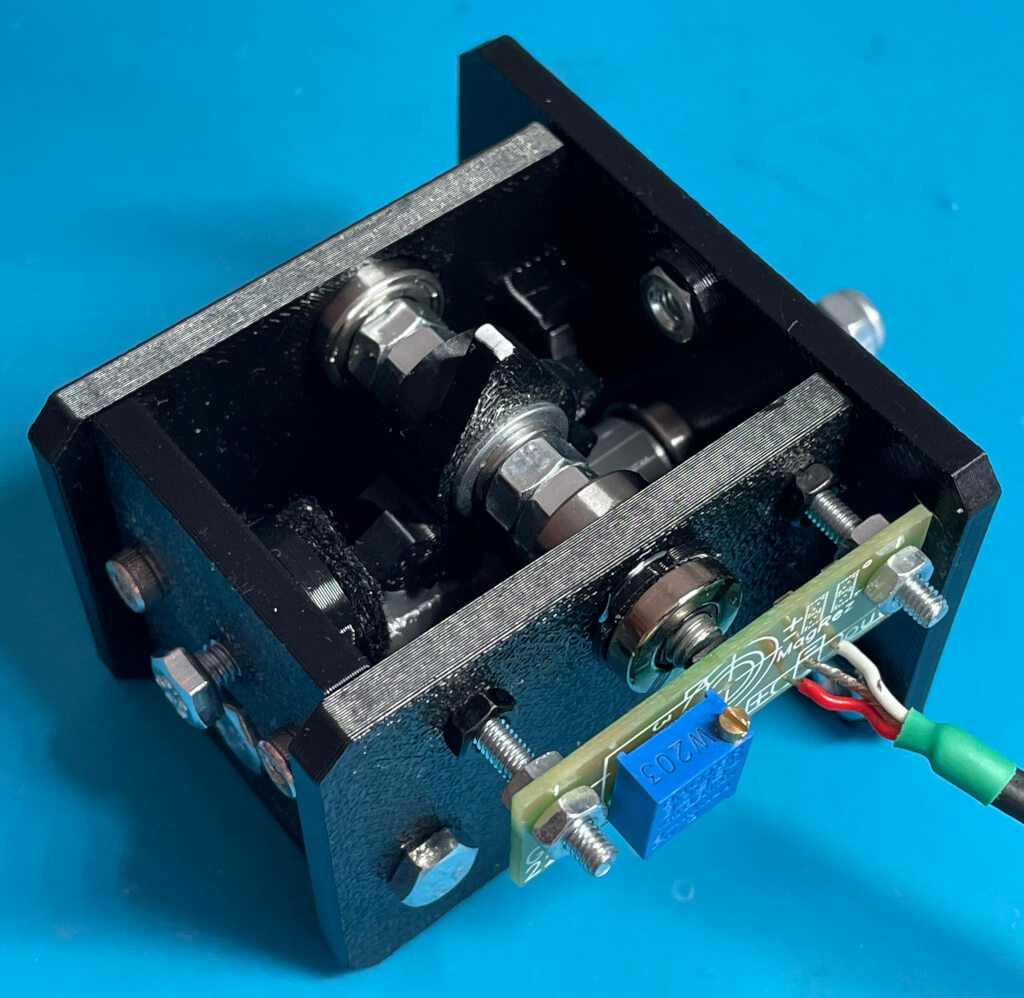

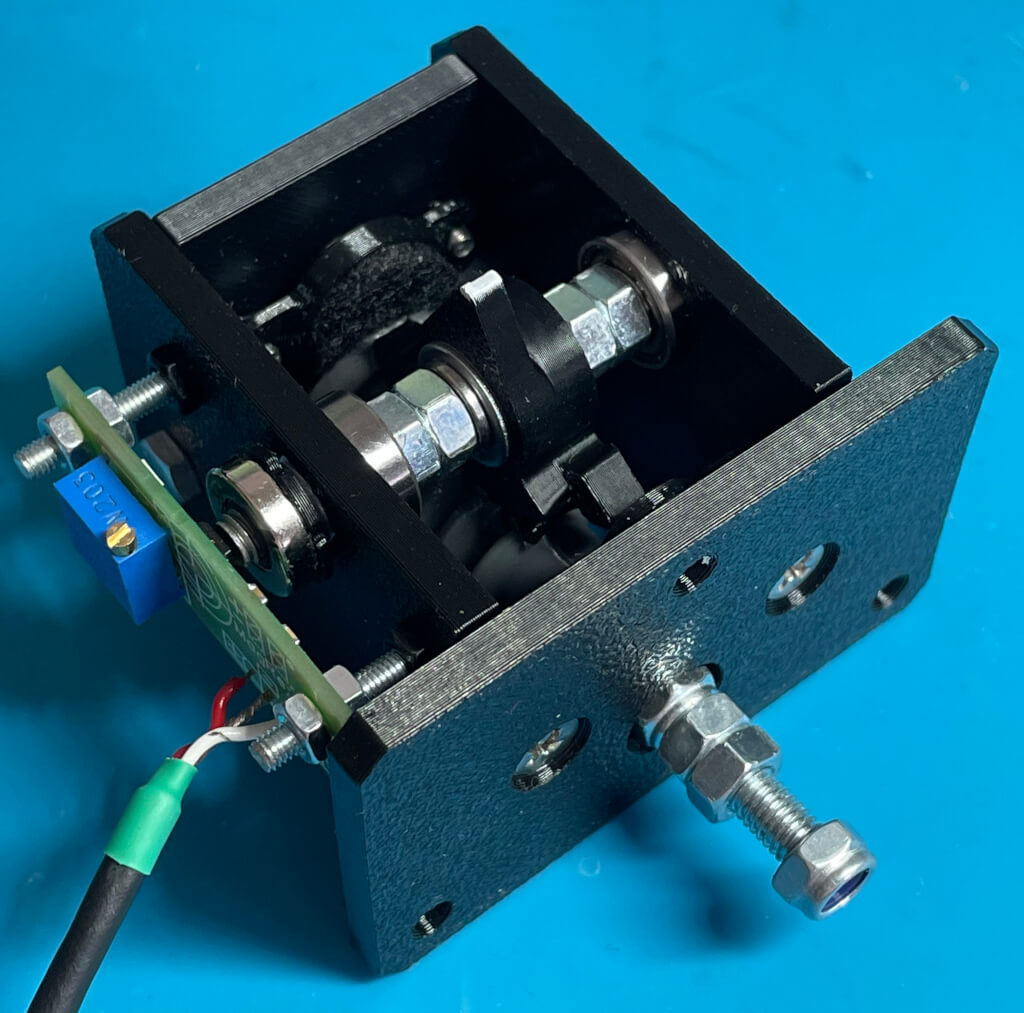

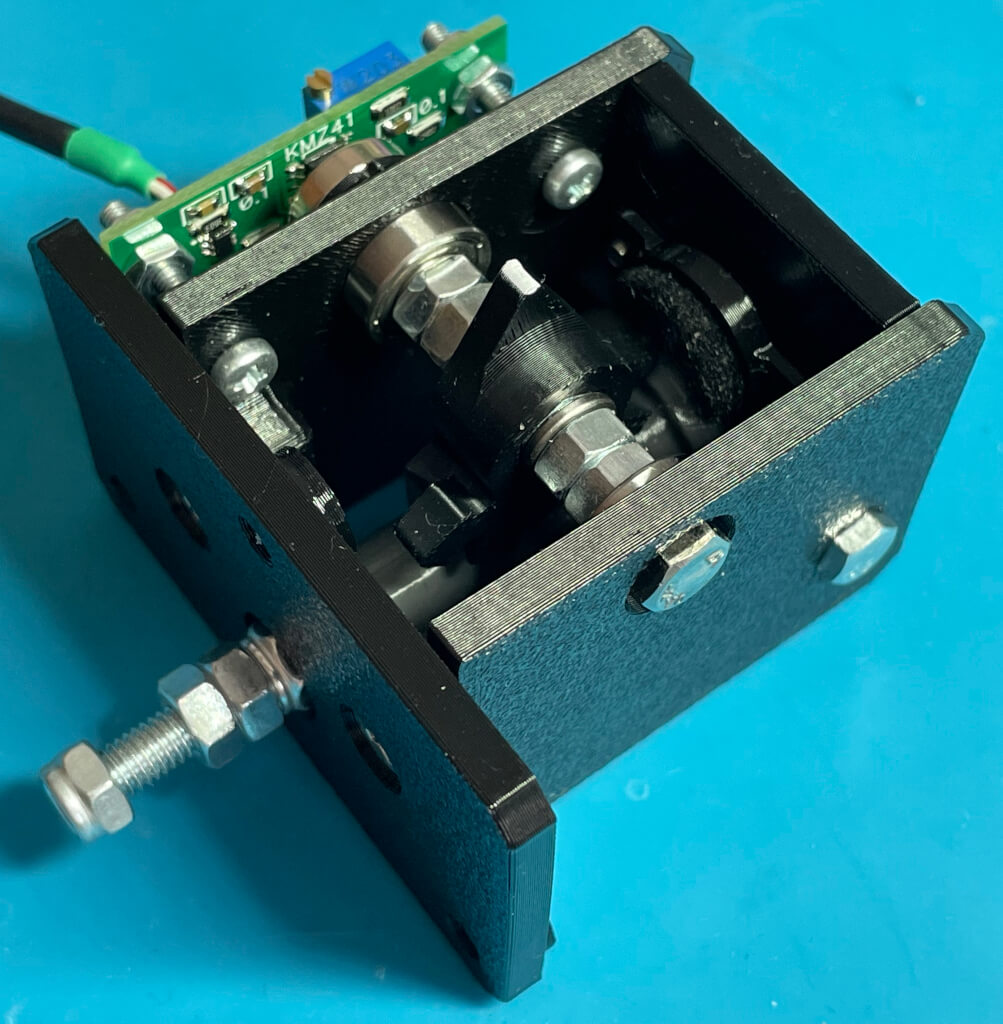

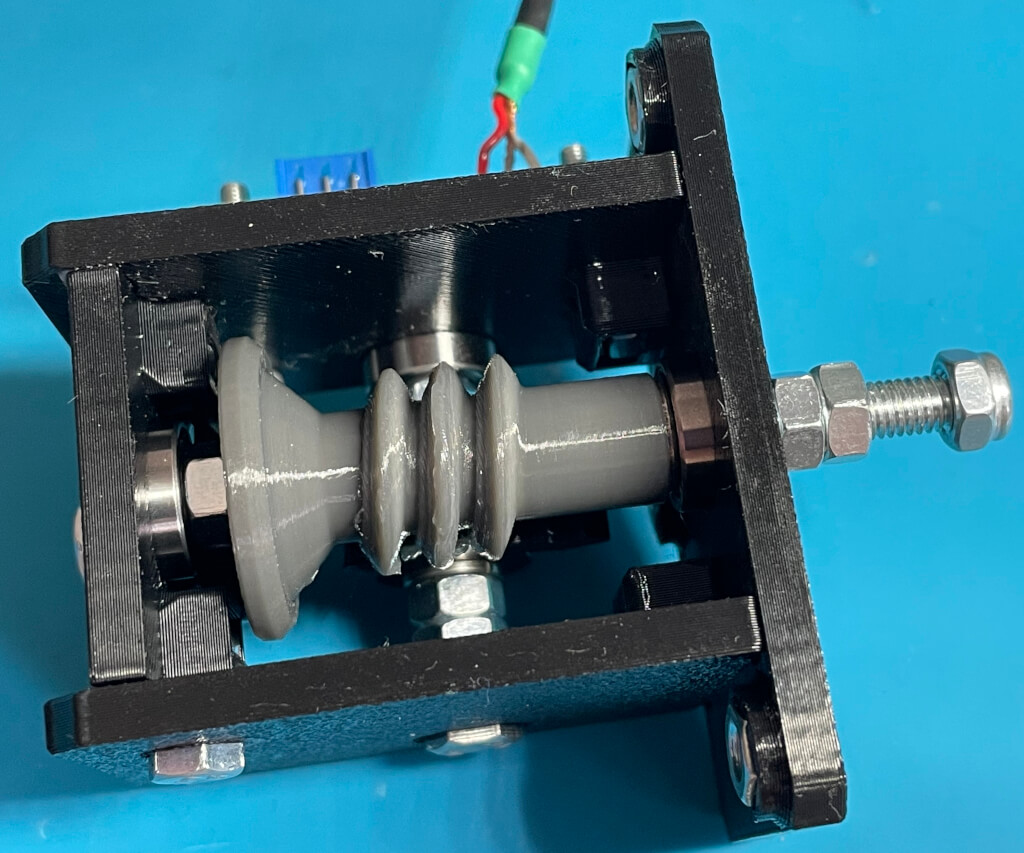

Multi-turn mechanics for 4 full turns.
The output shaft has 65 degrees.
All axles are iron on bearings.
It is possible to install my magnetic contactless sensor or yours yourself.


Mechanics video "Multi-turn" ...

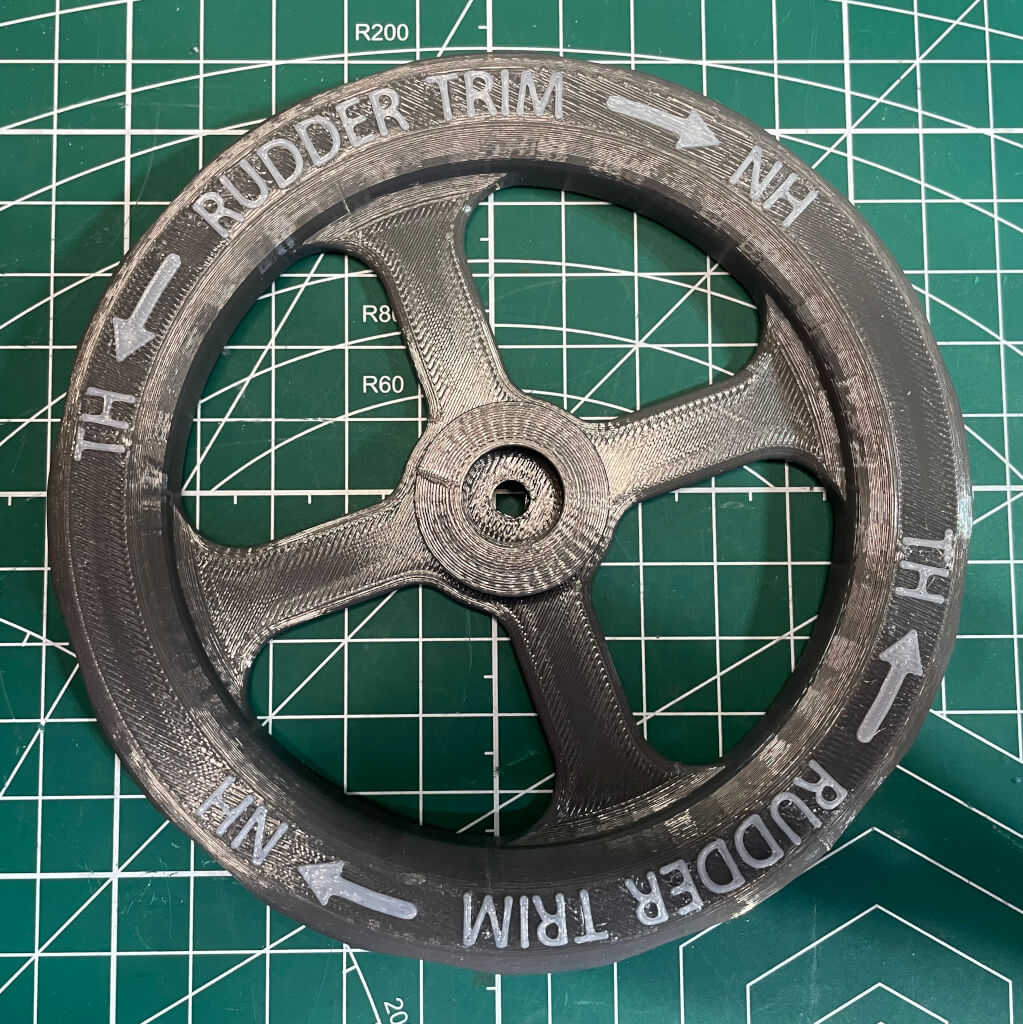

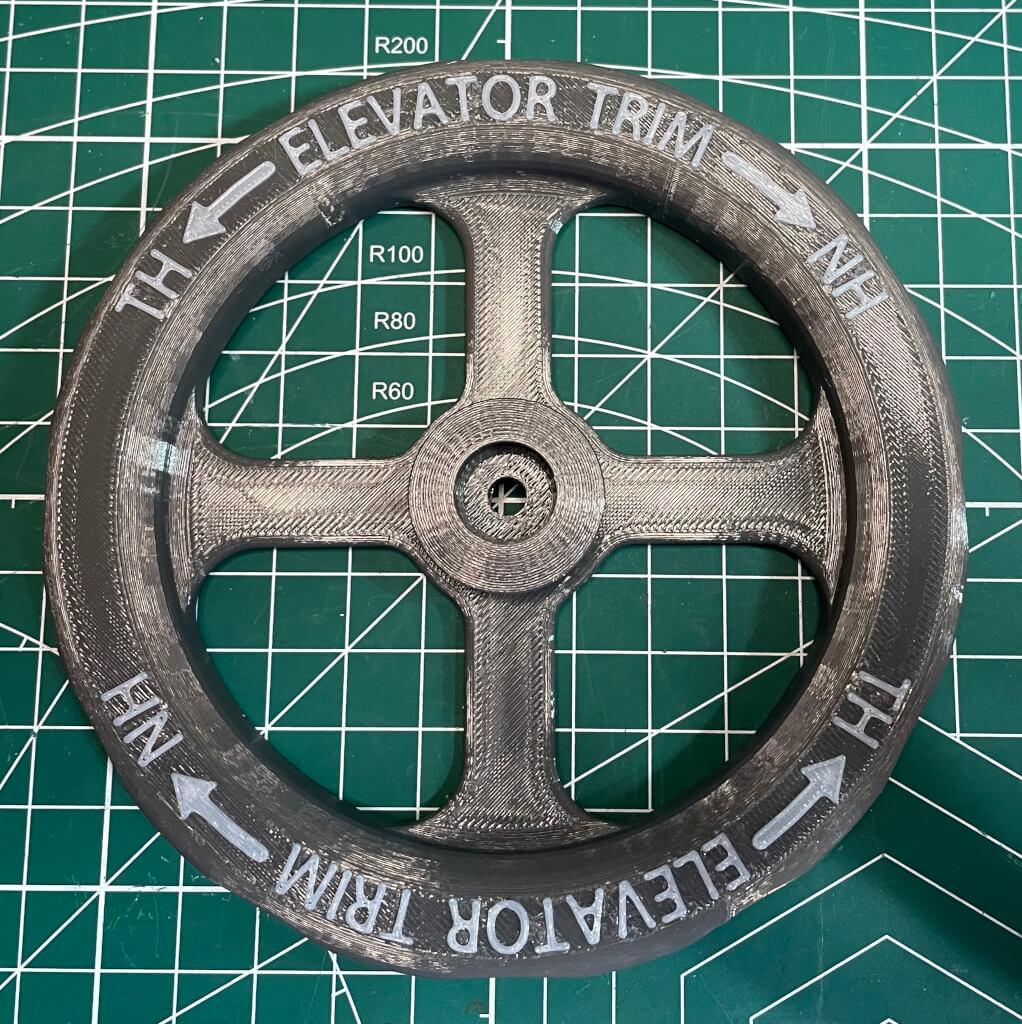

The trimmer wheel is large, 118mm in diameter.
The inscriptions and color can be changed according to your wishes.

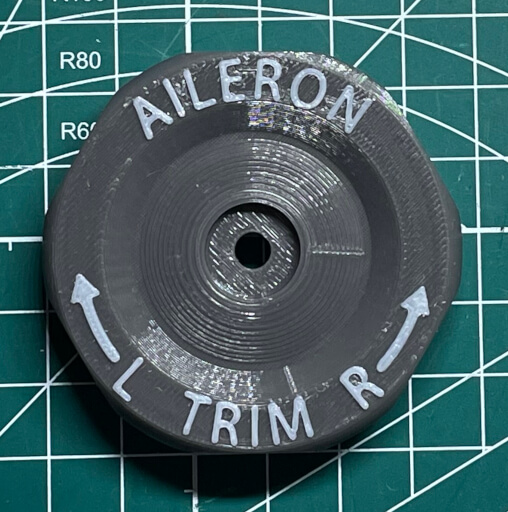

The trimmer wheel is small, 56mm in diameter.
The inscriptions and color can be changed according to your wishes.

Lever "RUD" 6mm thick for installation on GVL224 "RUD" or "Sparka" mechanics, the bend angle can be any at your request.

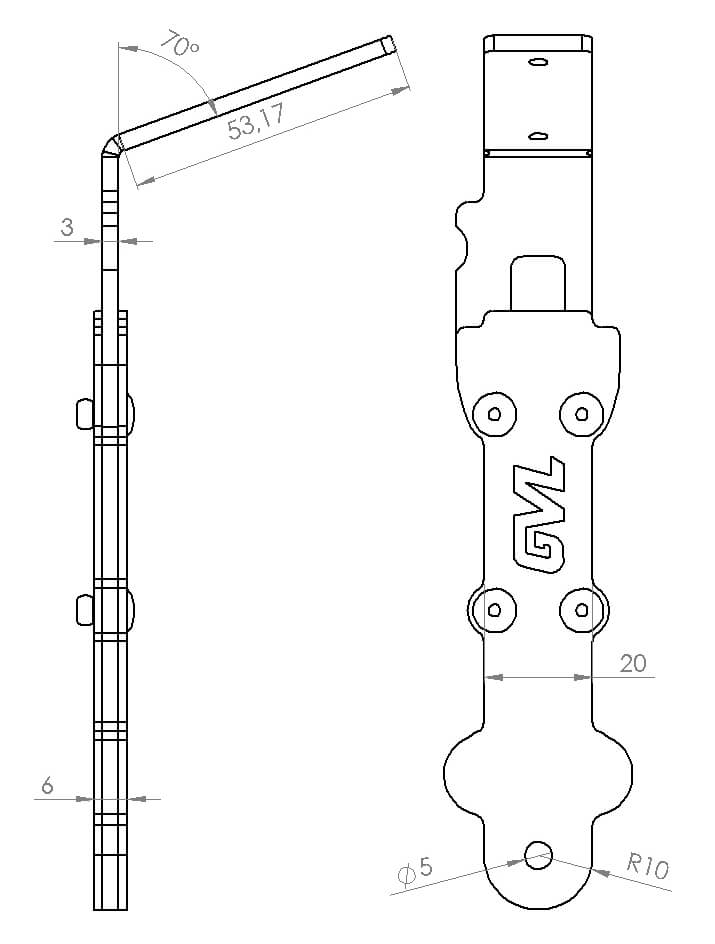

Lever drawing with "dimensions".

Possible handle option ...

Possible handle option ...

Lever "Screw pitch" 2mm thick for installation on GVL224 "Universal" or "Sparka" mechanics, the bend angle can be any at your request.

Lever drawing with "dimensions".

The "Universal" lever is 80 mm high, 2 mm thick for installation on the GVL224 "Universal" or "Sparka" mechanics, also the bend angle of the upper part of the lever can be any at your request.

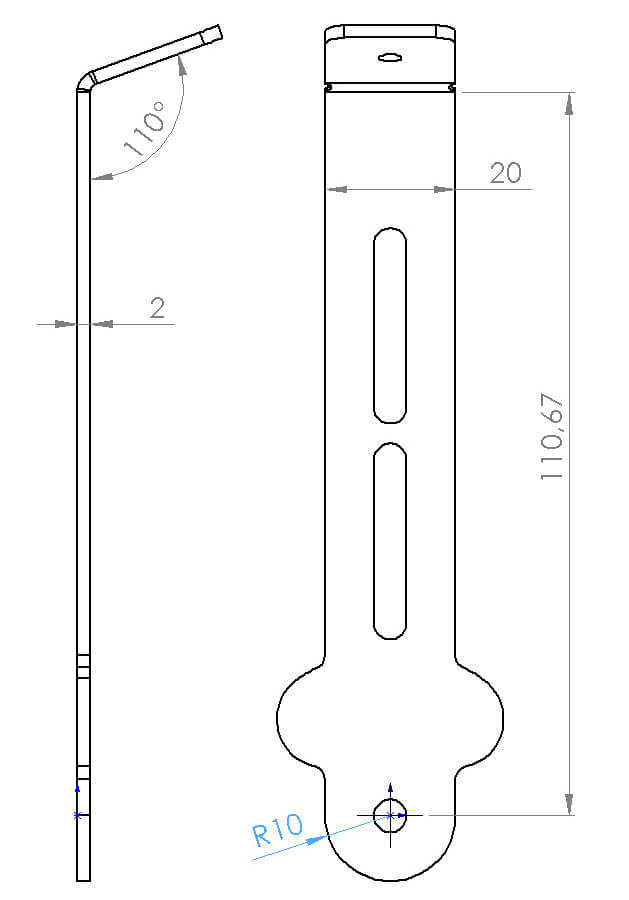

Lever drawing with "dimensions".

The "Universal" lever is 100 mm high, 2 mm thick for installation on the GVL224 "Universal" or "Sparka" mechanics, also the bend angle of the upper part of the lever can be any at your request.

Lever drawing with "dimensions".

The "Universal" lever is 120 mm high, 2 mm thick for installation on the GVL224 "Universal" or "Sparka" mechanics, also the bend angle of the upper part of the lever can be any at your request.

Lever drawing with "dimensions".

The "Universal" lever is 150 mm high, 2 mm thick for installation on the GVL224 "Universal" or "Sparka" mechanics, also the bend angle of the upper part of the lever can be any at your request.

Lever drawing with "dimensions".
