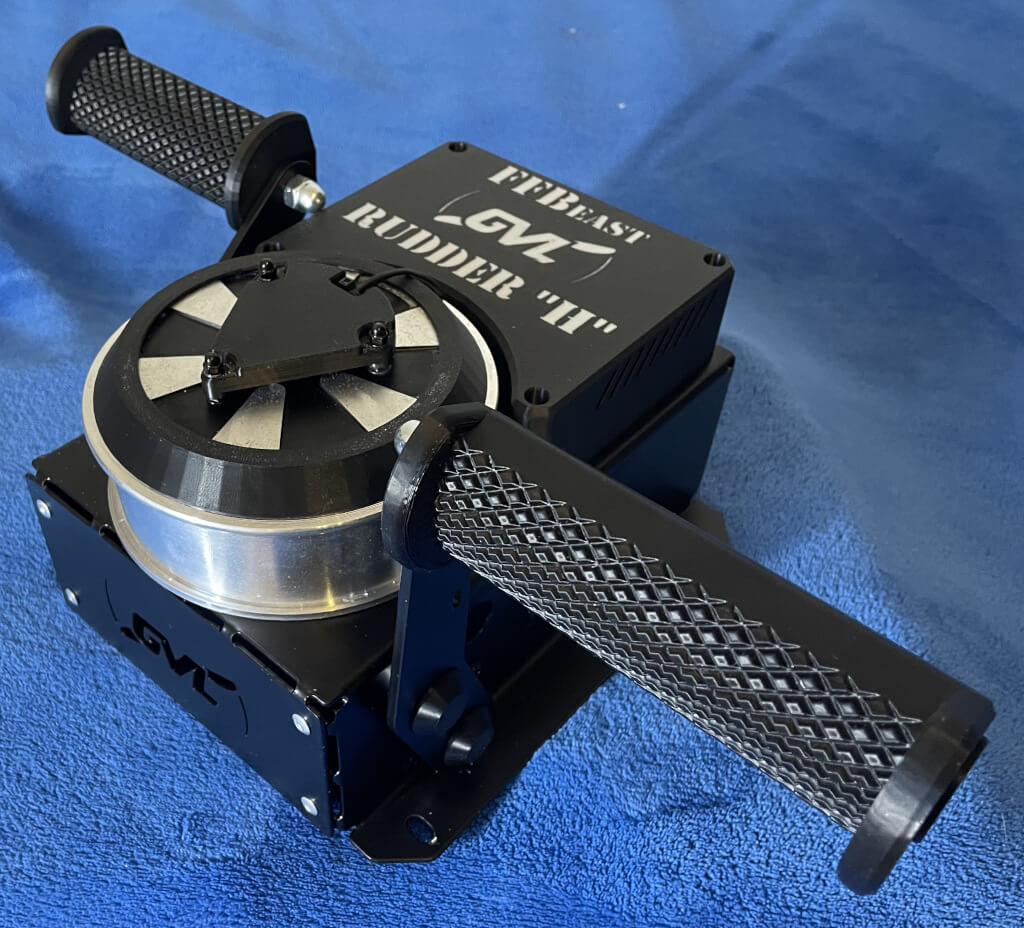

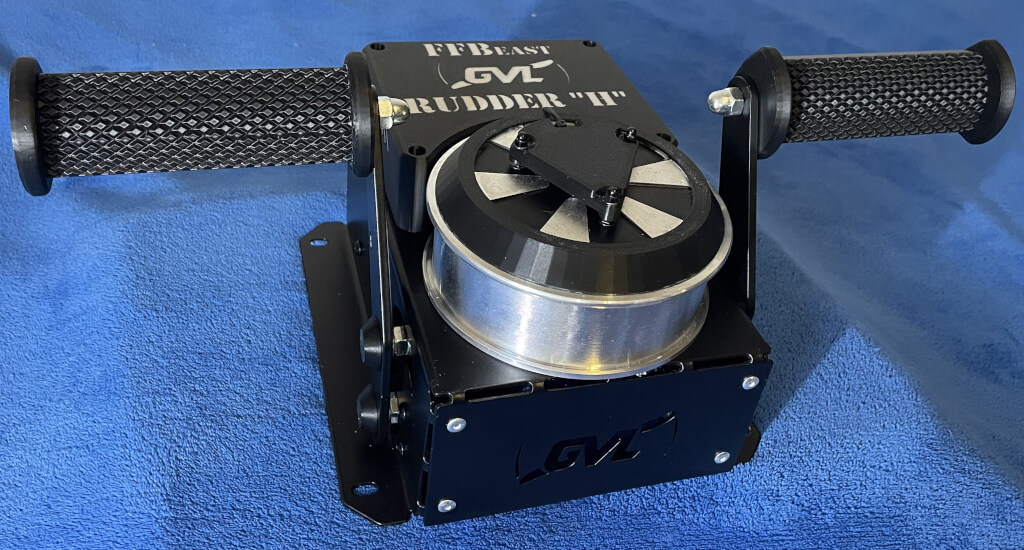

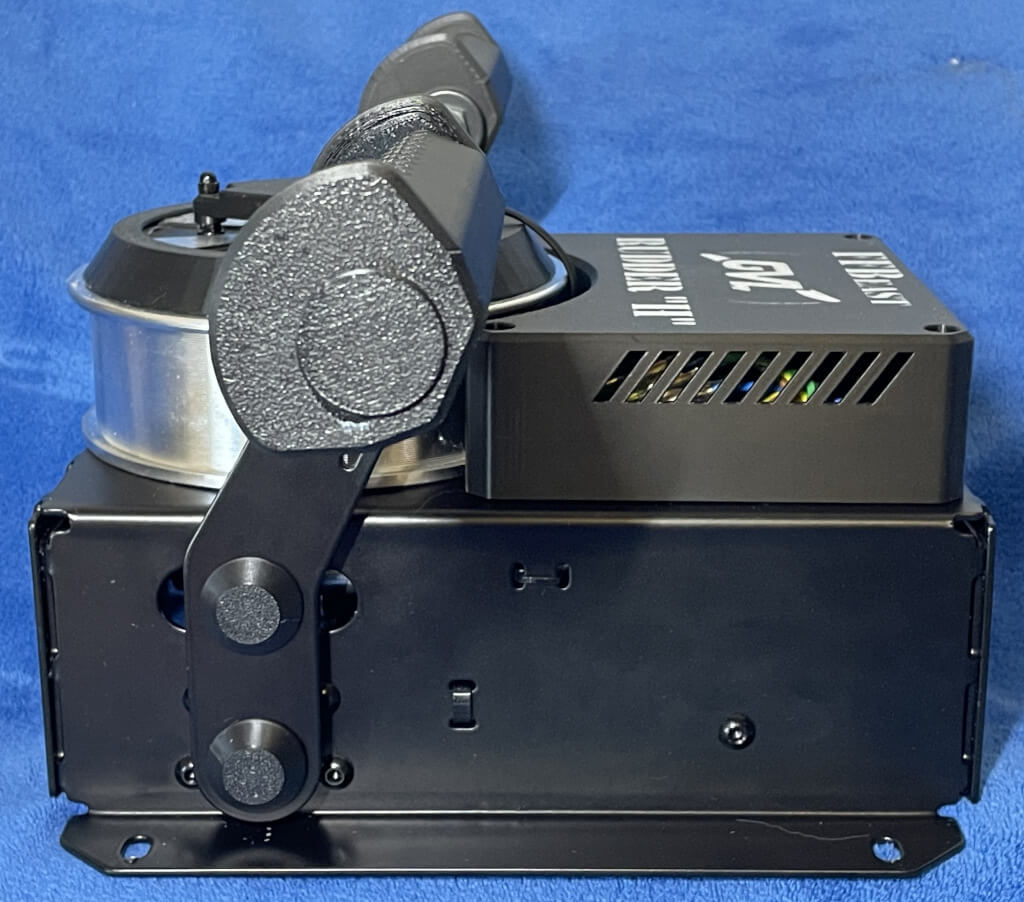

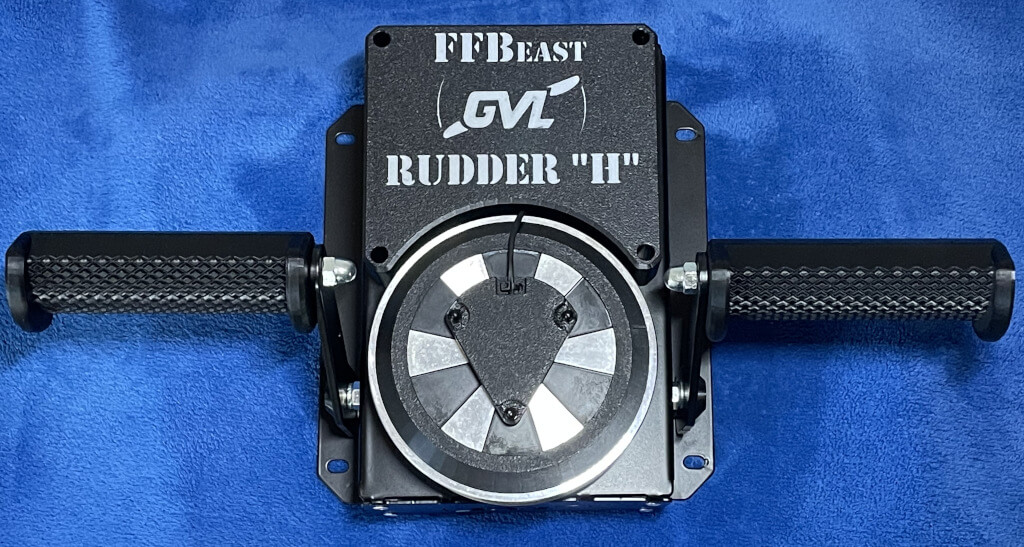

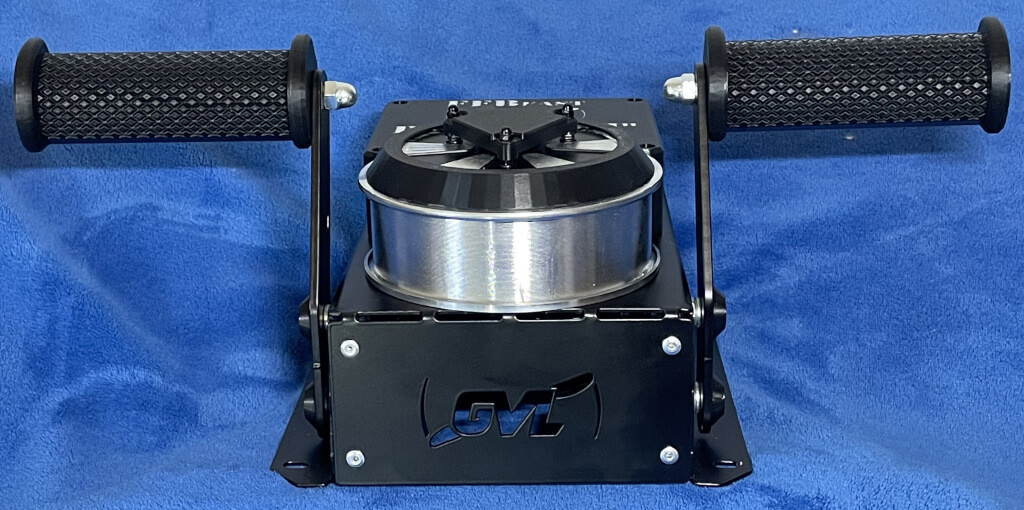

Rudder (Pedals) for the FFBeast flight simulator with force feedback.
The pedal travel is approximately +/- 5.5 cm (total travel 11 cm).
The maximum pedal force is approximately 10 kg!!!

Three free programs are used to configure force feedback and interact with the simulators.
The first program is designed for motor and brake tuning, the second for testing operation outside the simulator, and the third for configuring effects in the simulators. Only the third program, "Effects," should be launched before starting the flight simulator.
When playing in a flight simulator, the rudder uses a combination of data from both its controller and the simulator.
The program offers a wide range of settings for various effects. Learn more on the project and software author's website: https://ffbeast.github.io/


The project author (Roman, nicknamed Propeler3D) continues to work on improving the software.
Every FFBeast configuration is fully tested and configured before shipping, including purchasing a license key from the software author.


Basic Configuration:
- Black housing.
- MT6835 (65535 CPR) magnetic encoder on the outside of the motor.
- 200-300W motor.
- License key.


- The cost of delivery depends on the country of receipt of the parcel (weight 5,5 kg) from 11 to 100 euros.


Photo may differ slightly from the actual unit.


Video of FFBeast Rudder "Base - Helicopter" - Video of FFBeast Rudder "Base - Helicopter"!


Video of Assembly of the FFBest rudder "Helicopter" after receipt - Video of Assembly of the FFBest rudder "Helicopter" after receipt!

Want to Order? Write me!

---

The “Base” package can be ordered additionally:

Power supply 12 volts - 30A. There is a 220V - 110V switch on the power supply body.


220-100 V connection socket with fuse and connection cable to FFBeast.
The cover is printed on a 3D printer and closes access to the 220-110 V contacts.
The length of the cable with XT60 connectors 12v is 90 cm.


Programmable speed controller for cooling fan in power supply.
Since power supplies are different and may not have a speed controller for cooling fan, the fan runs constantly at maximum speed, which is accompanied by an uncomfortable noise level.
After installing this controller in the power supply, you can significantly reduce the noise level from the power supply.


Video Fan speed control - Video of Fan speed!



The power supply does not come with a cable for connecting it to a power outlet (110V-220V).
You must use a cable of the required length and with a plug that matches the standard of your country (outlet).



To connect the FFBest device, you can use your own power supply with the appropriate parameters.

USB isolator. Recommended to prevent possible damage to USB ports on the computer in case of accidental failure of the FFBeast controller. This is a kind of fuse.

ST-Link-V2 programmer with cable.

You may need this programmer to update the controller firmware if you cannot update the firmware via USB.


Video of using the ST-Link-V2 programmer - with the ODrive controller.
