The "UA" throttle has body dimensions of 18 cm width and 20.6 cm length.
The Throttle has an MJoy16 controller installed.
MagRez non-contact magnetic sensors are installed on the mechanical axes.

One “RUD” mechanic is installed in the Throttle, this mechanic can be used for both the left hand and the right hand. The handle can be made according to your individual project, taking into account my capabilities and the capabilities of the controller ( handle example1 , handle example2 ).

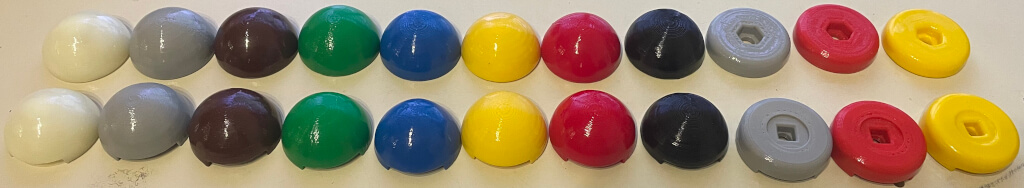

Also, two "Universal" mechanics are installed in the throttle. These mechanics can have arms of different lengths and different bend angles if desired. Ball or puck shaped handles.

The following are installed on the Throttle body:
- on the front panel there are 8 buttons, 4 switches, two potentiometers (can be replaced with encoders);
- there are 6 buttons on the top panel at the back (the color may be different at your choice if I have it in stock);
- on the side panels, one potentiometer and one encoder (can also be swapped).

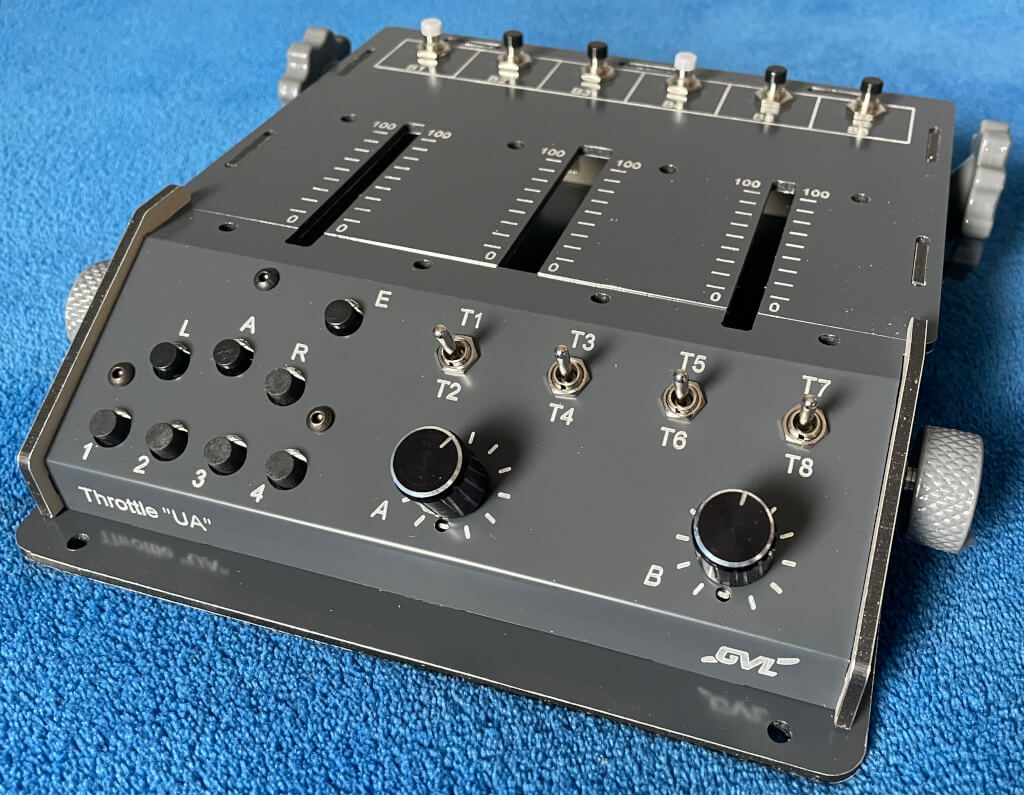

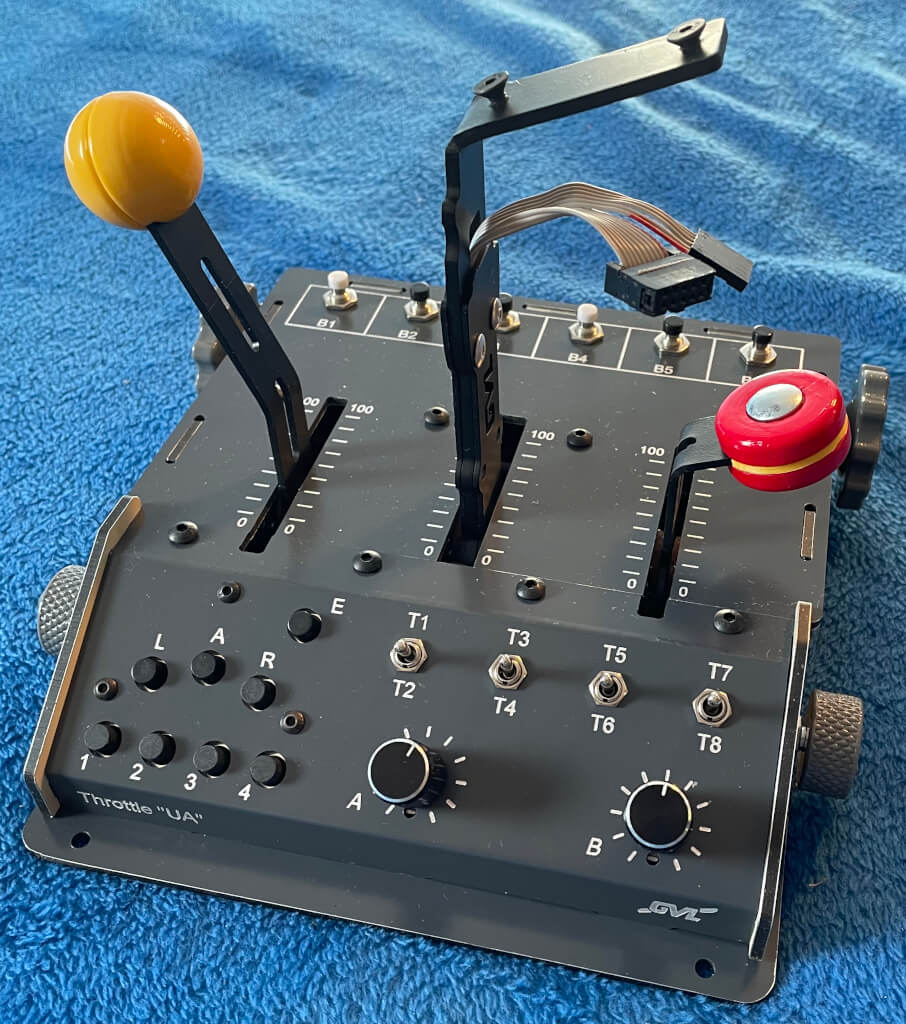

Photo base "zoom".

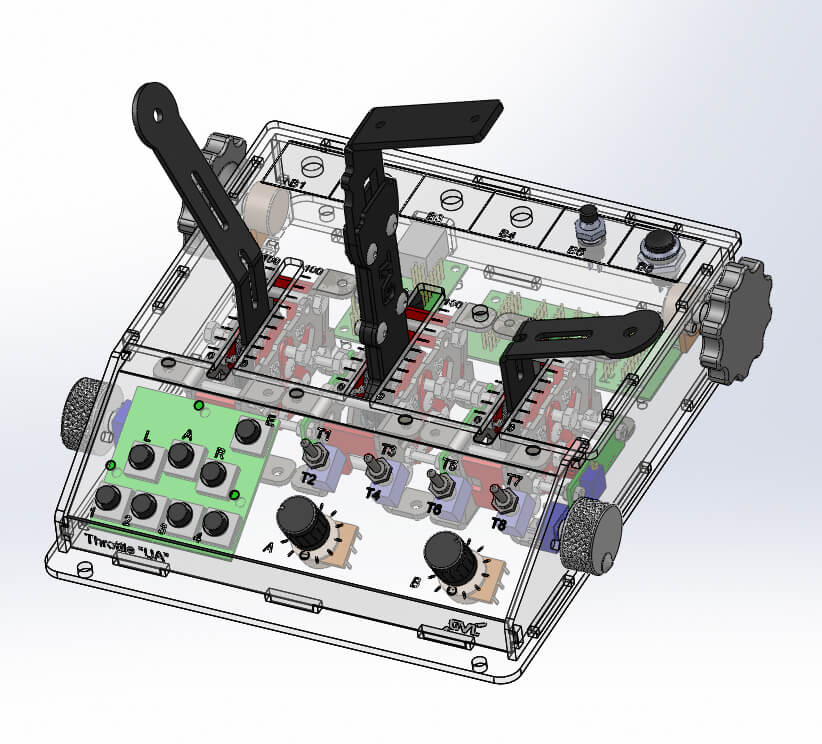

Scheme Throttle "zoom".

Video "base" - Throttle "UA"

Want to Order? Write me!
