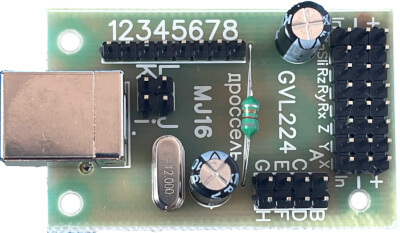

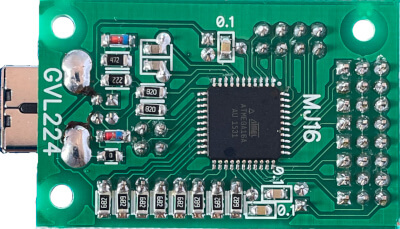

Controller MJoy16 (without Diode Matrix)

A controller for a game manipulator (joystick, steering wheel, steering wheel, pedals, throttle, etc.) in general, everything that works according to their principle.

Allows you to use up to 8 axes (each axis is 10 bits), up to 64 buttons, up to 16 toggle switches (closing-opening = different buttons), 4 encoders, 1 "HAT". On the same board with the microcontroller there is a "diode matrix" that facilitates the connection of "buttons".

The controller connects to the computer via USB, no drivers are required. The Windows operating system is defined as "MJ16". After the controller is detected by the operating system, it is necessary to calibrate the game devices using Windows tools.

Detailed information in the instructions /eng, rus/ for the MJoy16 controller.

If necessary, you can complete the controller with a set of connectors and jumper and non-contact magnetic sensors MagRez and a diode matrix and connecting wires between the diode matrix and the controller an additional fee.
