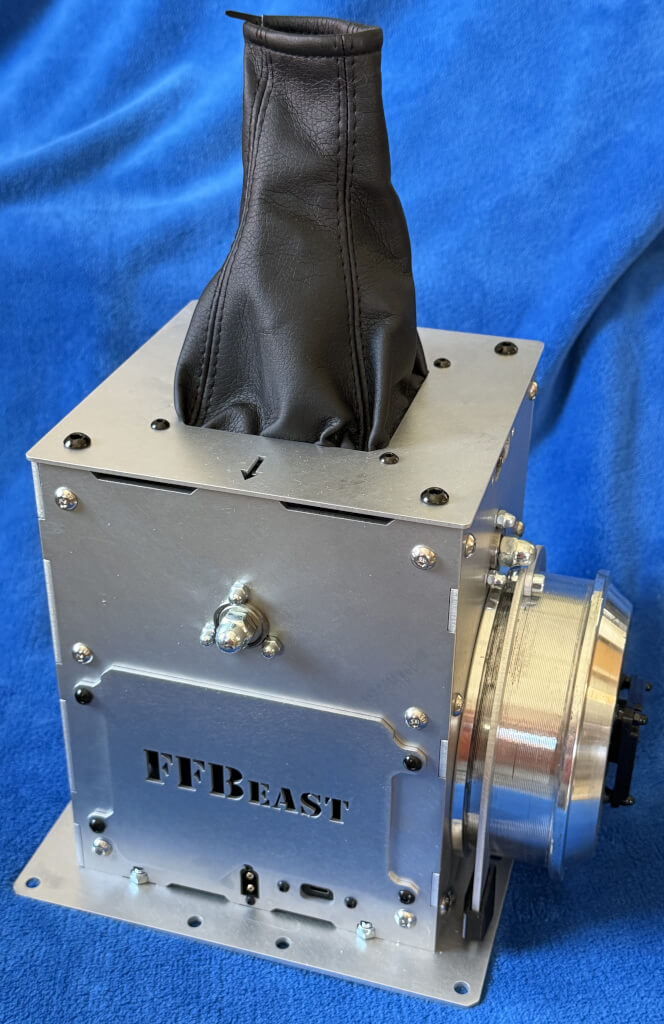

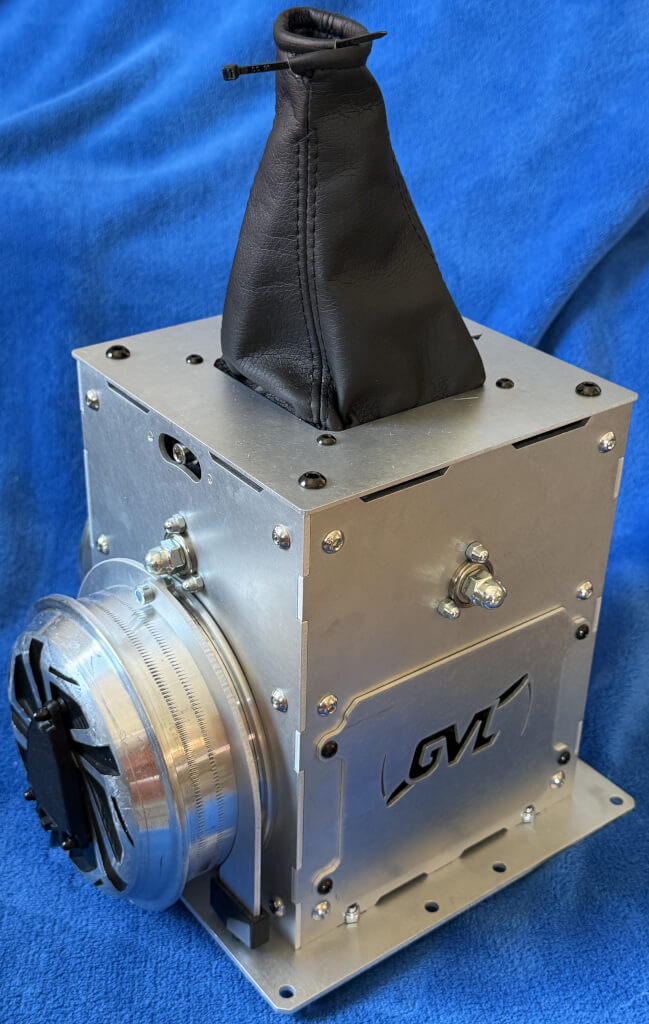

A joystick with force feedback and a handleless design from the FFBeast project.

The user installs and uses their own handle. A metal handle is preferable if 100% of the motors (effects) are planned.

A wide range of VPC and Thrustmaster handles, as well as other handles, can be connected to the controller installed in the joystick (more details are available on the project and software author's website: https://ffbeast.github.io/).
When using handles from other manufacturers, an additional controller from those handles will likely be required.

An adapter for attaching the handle to the mechanics may also be required.

Three free programs are used to configure force feedback and interact with flight simulators.

The first program is designed for motor tuning, the second for testing operation outside of the flight simulator, and the third for configuring effects in flight simulators. Only the third program, "Effects," should be launched before launching a flight simulator.

When playing in a flight simulator, the joystick uses a combination of data from both its controller and the flight simulator. The program offers a wide range of settings for various effects. Learn more on the project and software author's website: https://ffbeast.github.io/

The project author (Roman, nickname Propeler3D) continues to improve the software.
The FFBeast device, regardless of configuration, is fully tested and configured before shipping, including purchasing a "key" from the software author.


Basic Package:

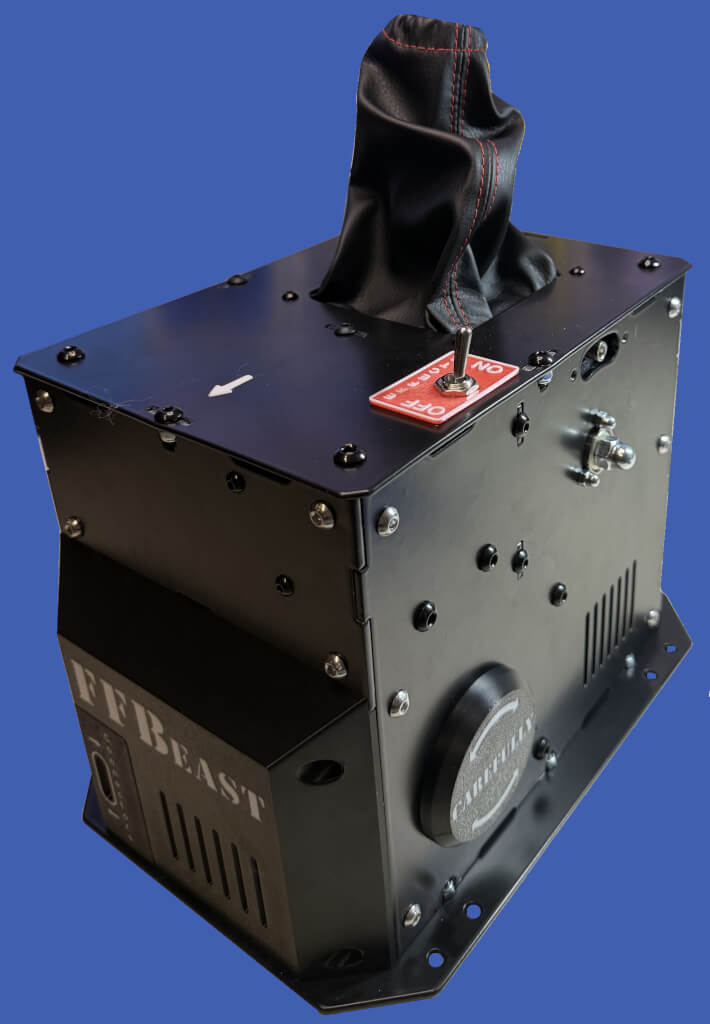

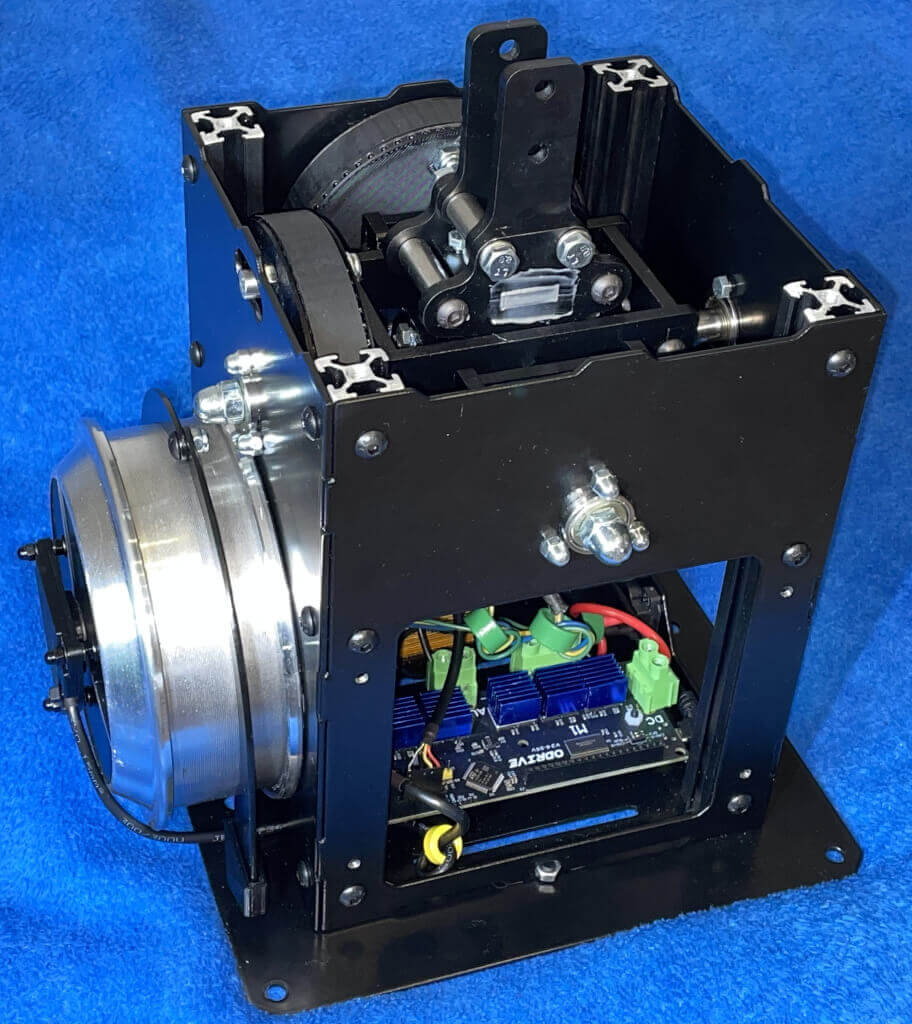

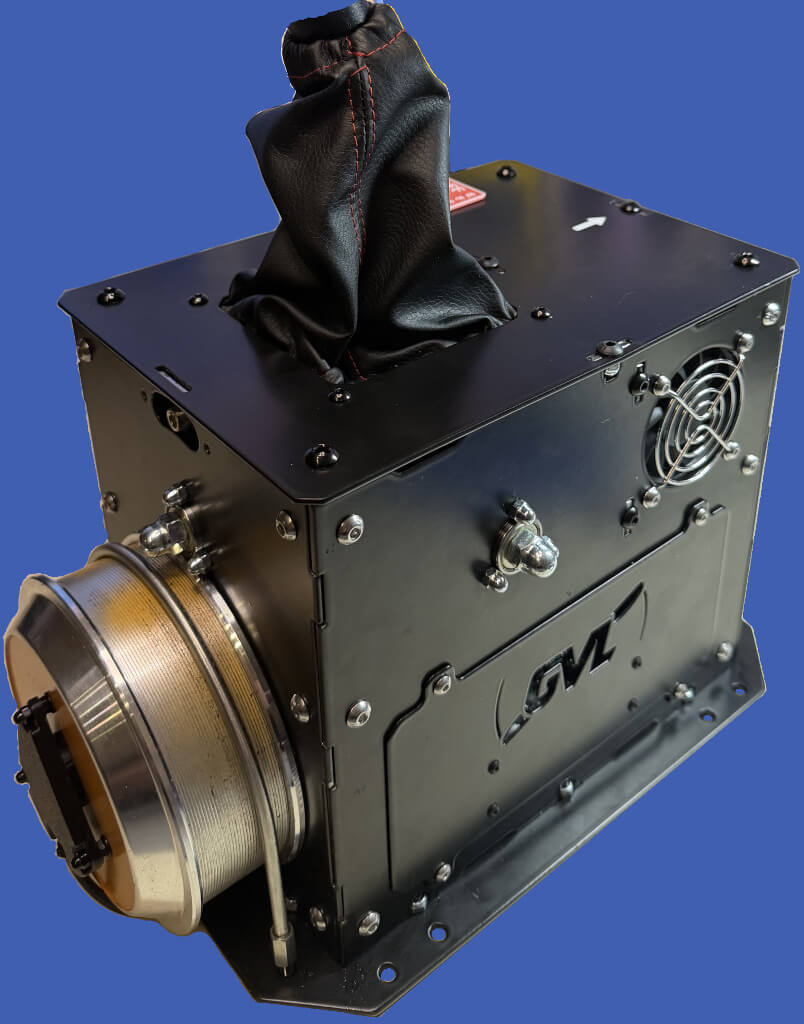

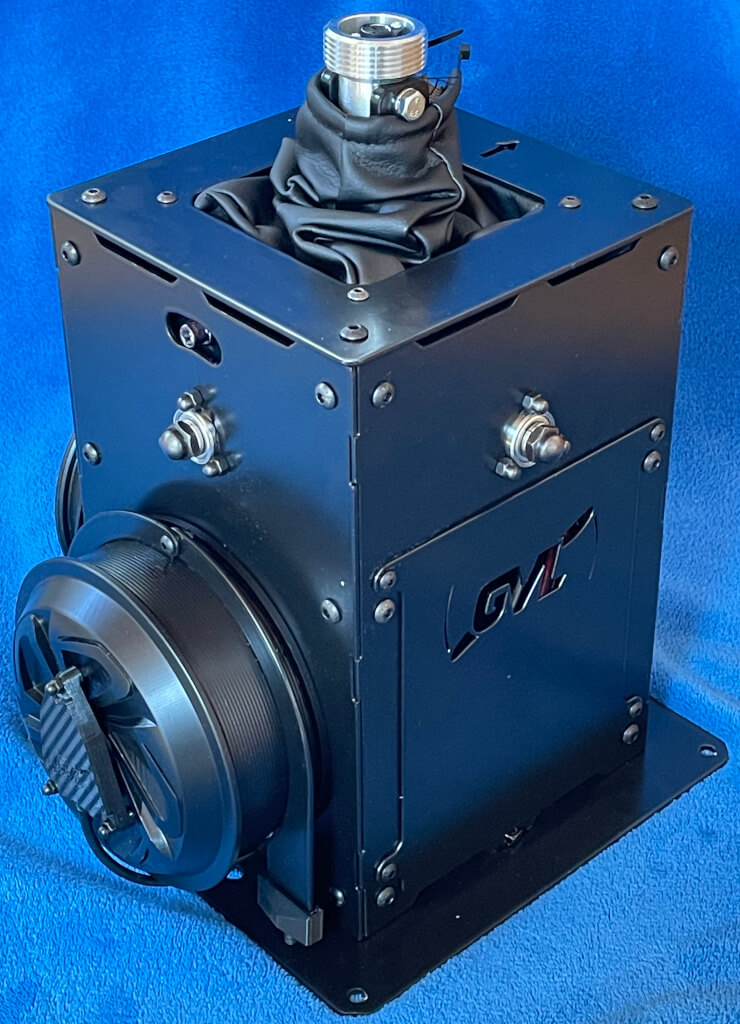

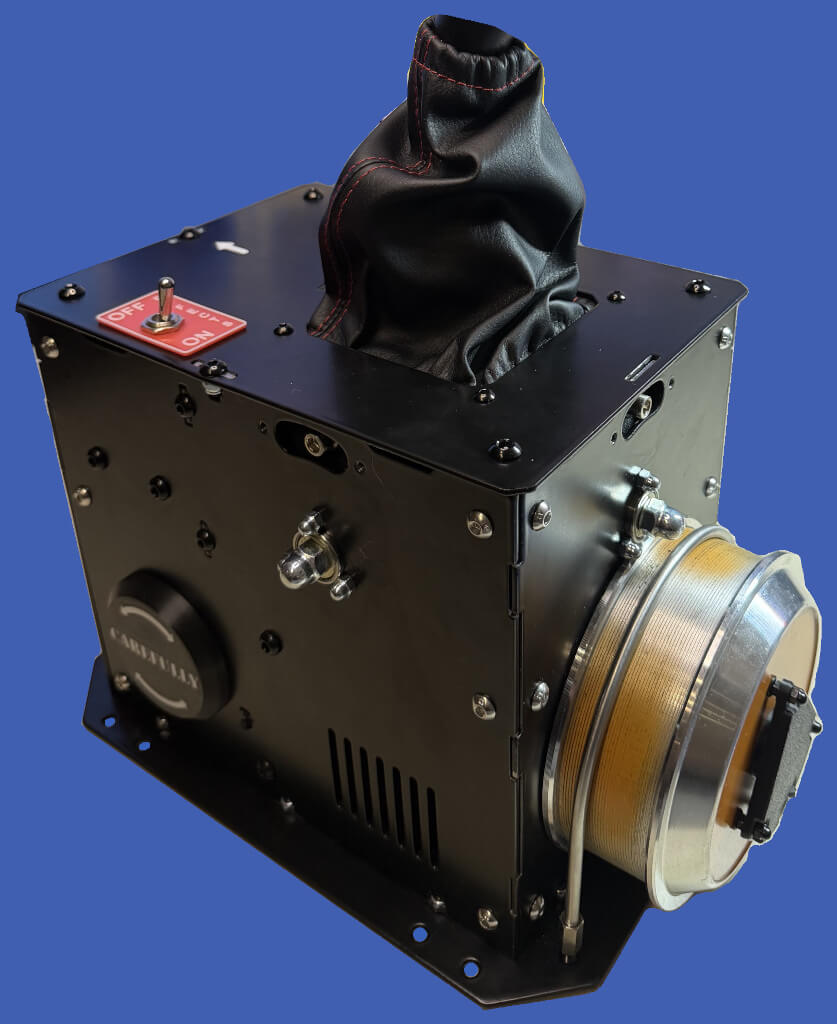

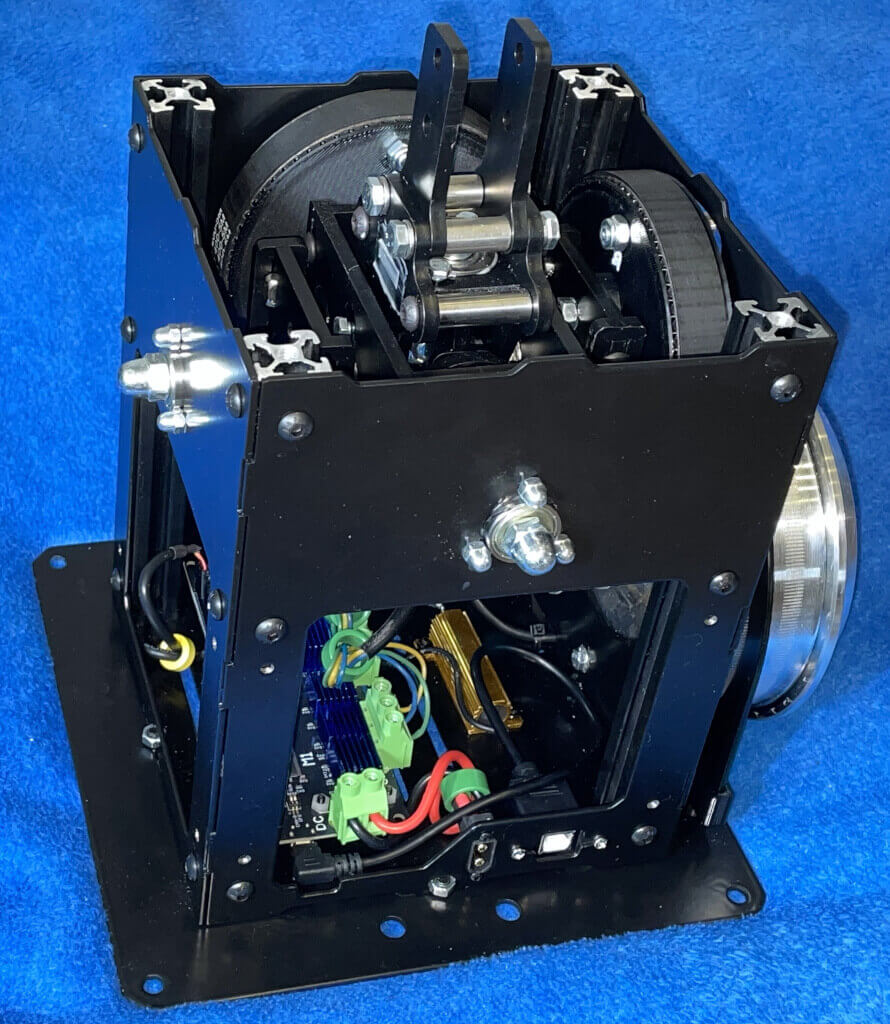

- Black case, 21.5 cm tall, FFBeast mechanics with a deflection angle of +-15 degrees (as shown in the photo / The appearance of engines may vary).
- Large 68-tooth mechanics gears, resulting in a 3.4:1 gear ratio.
- MT6835 (65535 CPR) magnetic encoders on the outer side of the motors.
- 300W roll (12.7 Nm) on joystick mechanics approximately 43 Nm and 350W pitch (15 Nm) motors on joystick mechanics approximately 51 Nm.
- License key.

A USB cable is not included. Use your own cable of the required length!!!

- The cost of delivery depends on the country of parcel receipt (weight 12-16kg) from 20 to 170 euro.


Video of FFBest joystick! - Video of FFBeast joystick!
Video of Changes to FFBeast joystick! - Video of Changes to FFBeast joystick!

Want to Order? Write me!

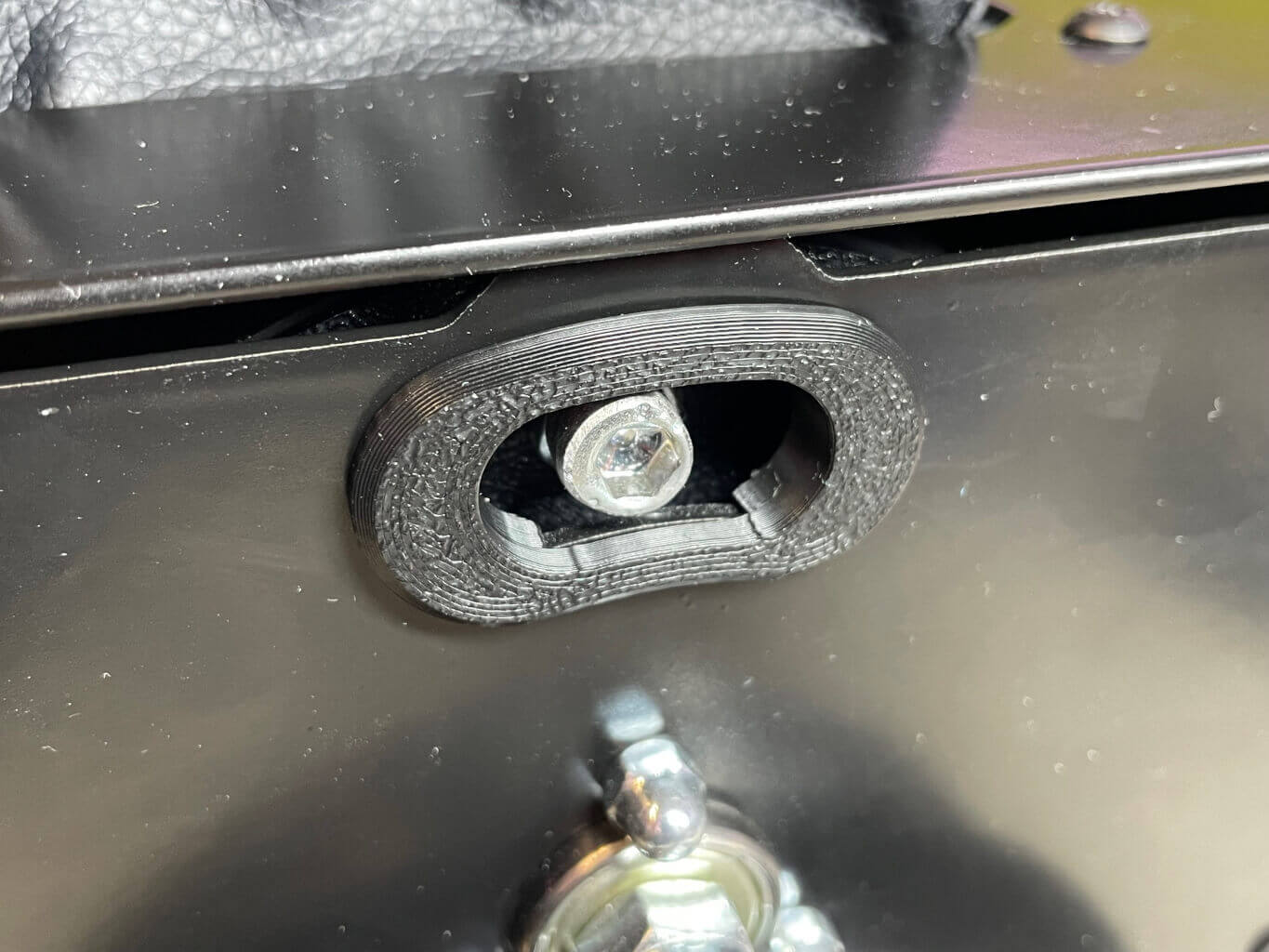

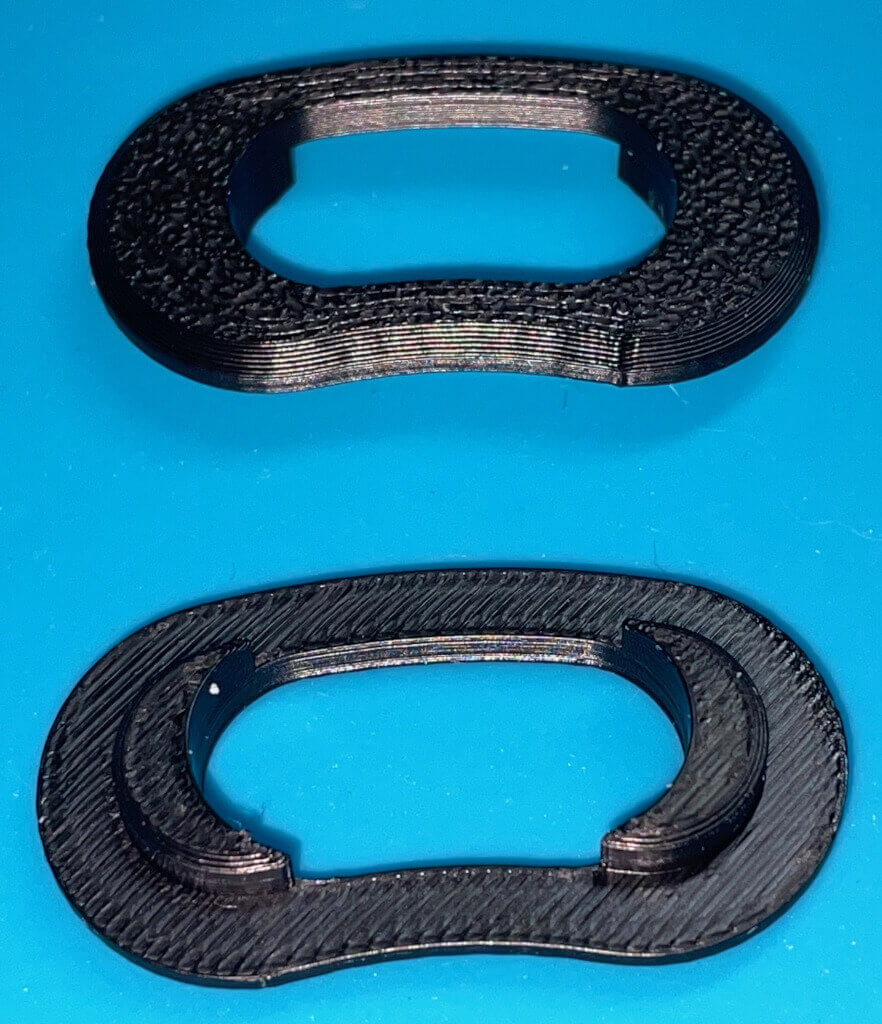

Plastic inserts for reducing the mechanical deflection angles of the joystick (set of 2).
The initial mechanical deflection angles are approximately +-15 degrees (30 degrees total).
These inserts can be made to any smaller angle, starting from +-13 degrees (26 degrees total), based on your preference.

Video! - Вставка – обмежувач / Insert - limiter!

Power supply 12 volts - 40A. There is a 220V - 110V switch on the power supply body.


220-100 V connection socket with fuse and connection cable to FFBeast.
The cover is printed on a 3D printer and closes access to the 220-110 V contacts.
The length of the cable with XT60 connectors 12v is 90 cm.


Programmable speed controller for cooling fan in power supply.
Since power supplies are different and may not have a speed controller for cooling fan, the fan runs constantly at maximum speed, which is accompanied by an uncomfortable noise level.
After installing this controller in the power supply, you can significantly reduce the noise level from the power supply.


Video Fan speed control - Video of Fan speed!



The power supply does not come with a cable for connecting it to a power outlet (110V-220V).
You must use a cable of the required length and with a plug that matches the standard of your country (outlet).



To connect the FFBest device, you can use your own power supply with the appropriate parameters.

USB isolator. Recommended to prevent possible damage to USB ports on the computer in case of accidental failure of the FFBeast controller. This is a kind of fuse.

Cable extension with "external" connector for connecting handle buttons (TM and VirPil, etc.) to the FFBeast controller. Cable length 45 cm.

Cable extension with "internal" connector for connecting handle buttons (TM and VirPil, etc.) to the FFBeast controller. Cable length 45 cm.

Extension cable with connector for connecting VKB handle buttons to external VKB controller. Cable length 50 cm.

Aluminum adapter for the “pipe”.



- Aluminum adapter for the “pipe”. Diameter adapter 22,8mm. To install a pipe with an internal diameter of 23mm.

Aluminum adapter for the “pipe”. Color can be "aluminum".


- Aluminum adapter for the “pipe” VKB. Diameter adapter 18,8mm. To install a pipe with an internal diameter of 19mm.


Video of FFBest joystick adapter for the “pipe” VKB! - adapter for the “pipe” VKB!

Aluminum adapter for the “nut”. Color can be "aluminum".



- Aluminum adapter for the “nut” VPC, TM. Diameter “nut” adapter M36.

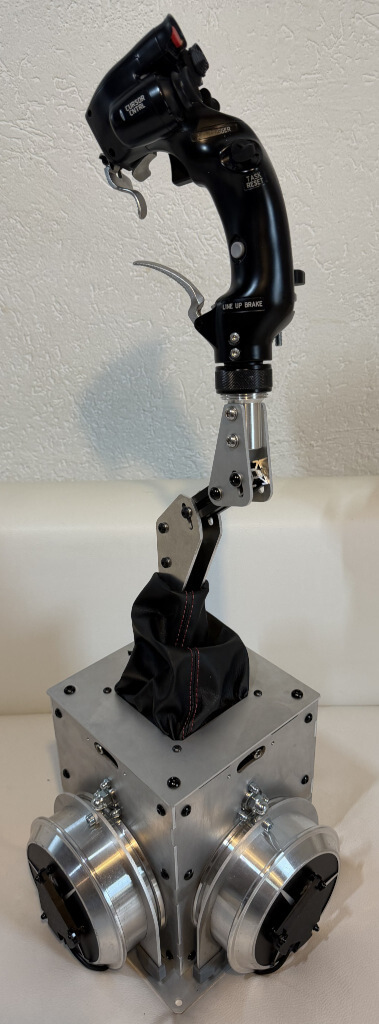

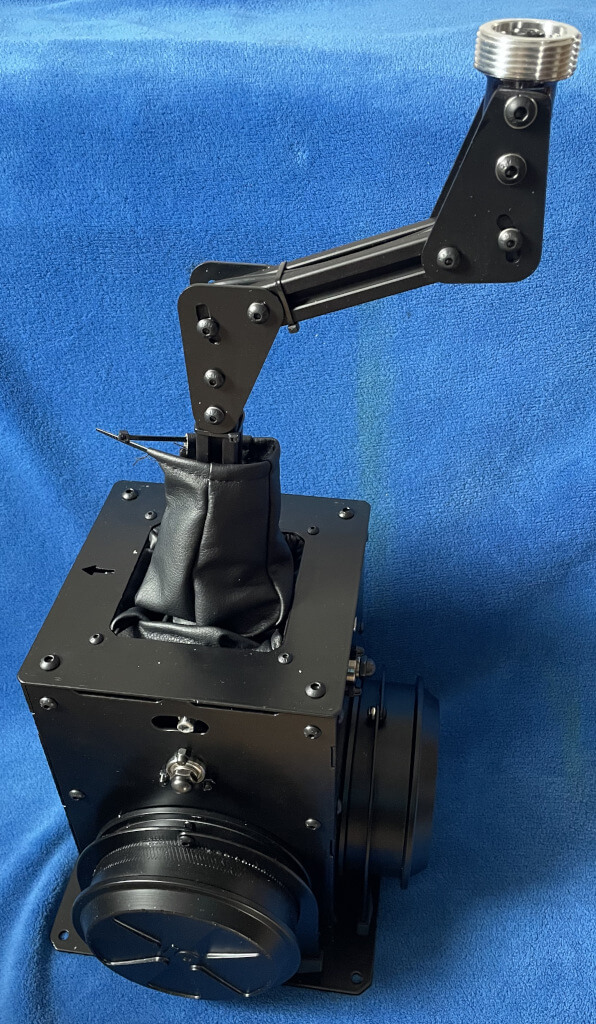

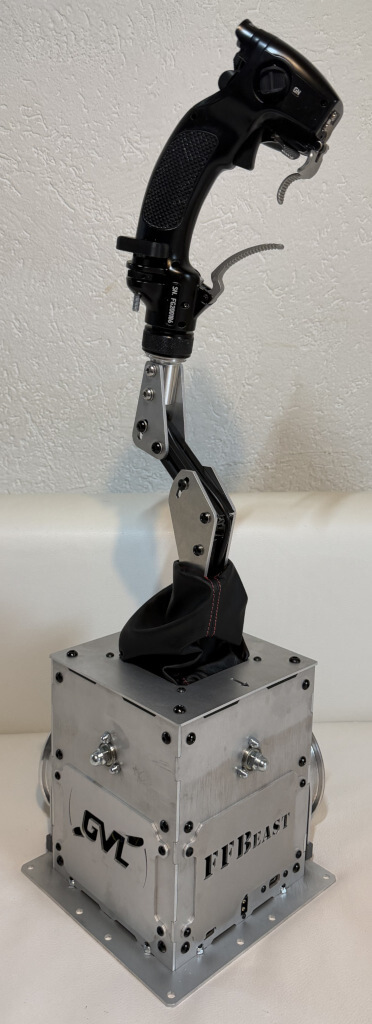

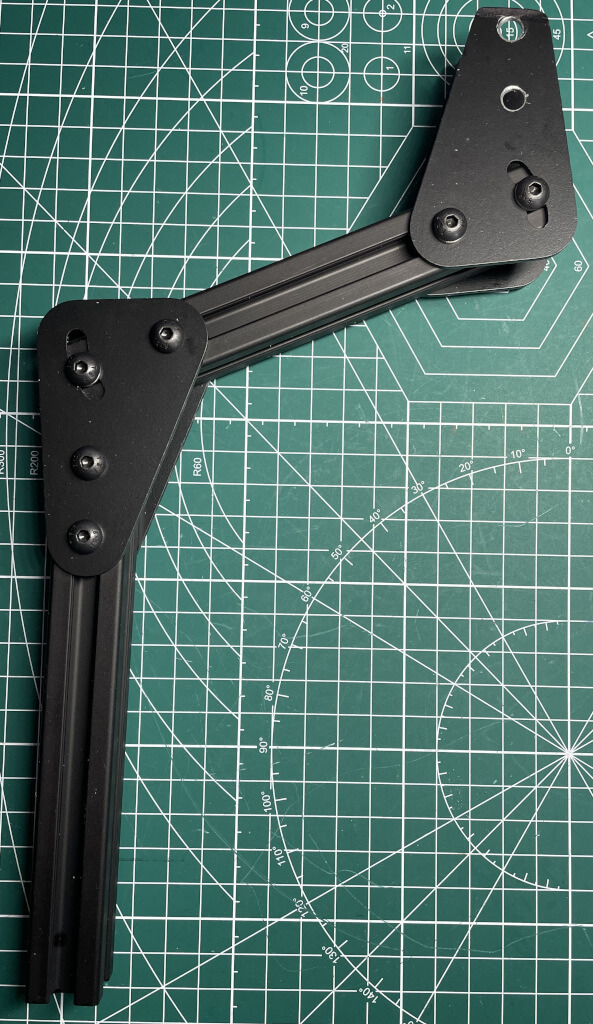

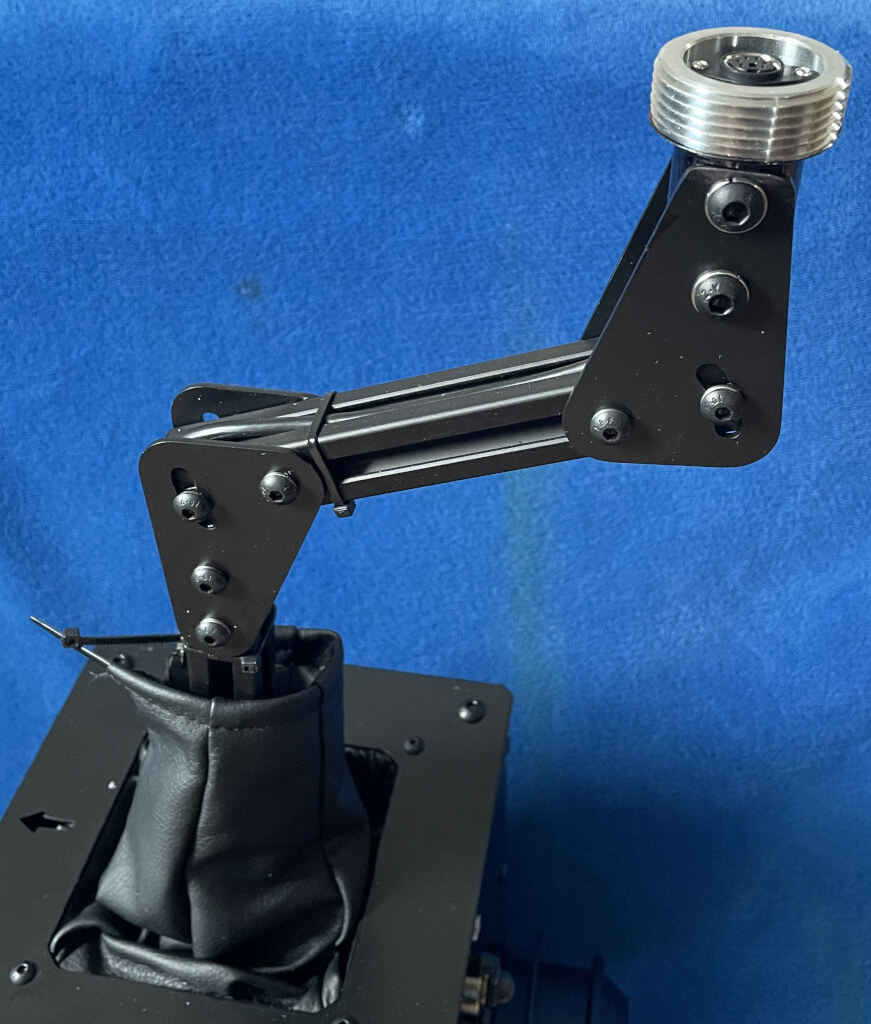

A set of profile and plates with bolts for creating a handle extension rod.



Any aluminum adapter from those I offer can be installed on the upper part.

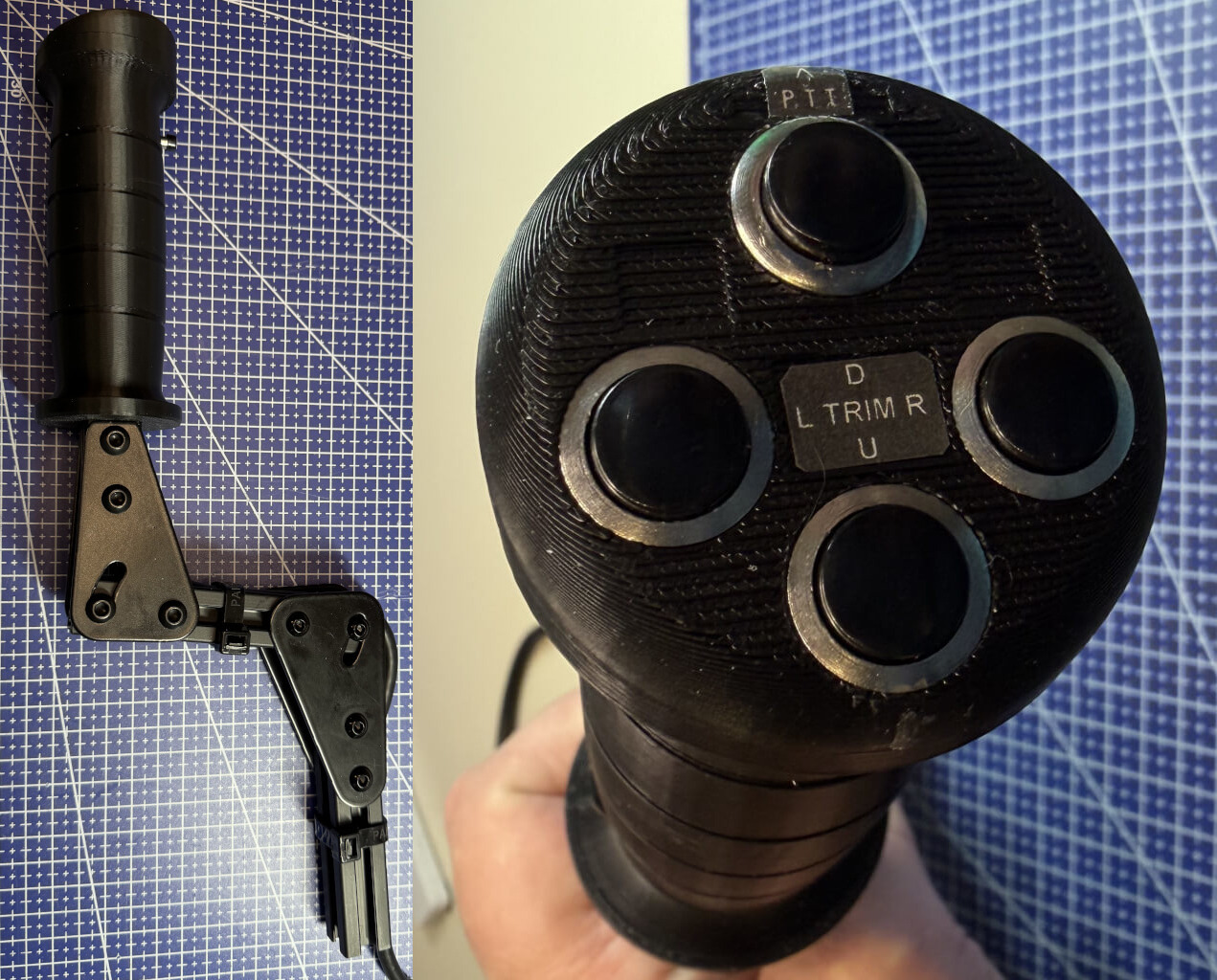

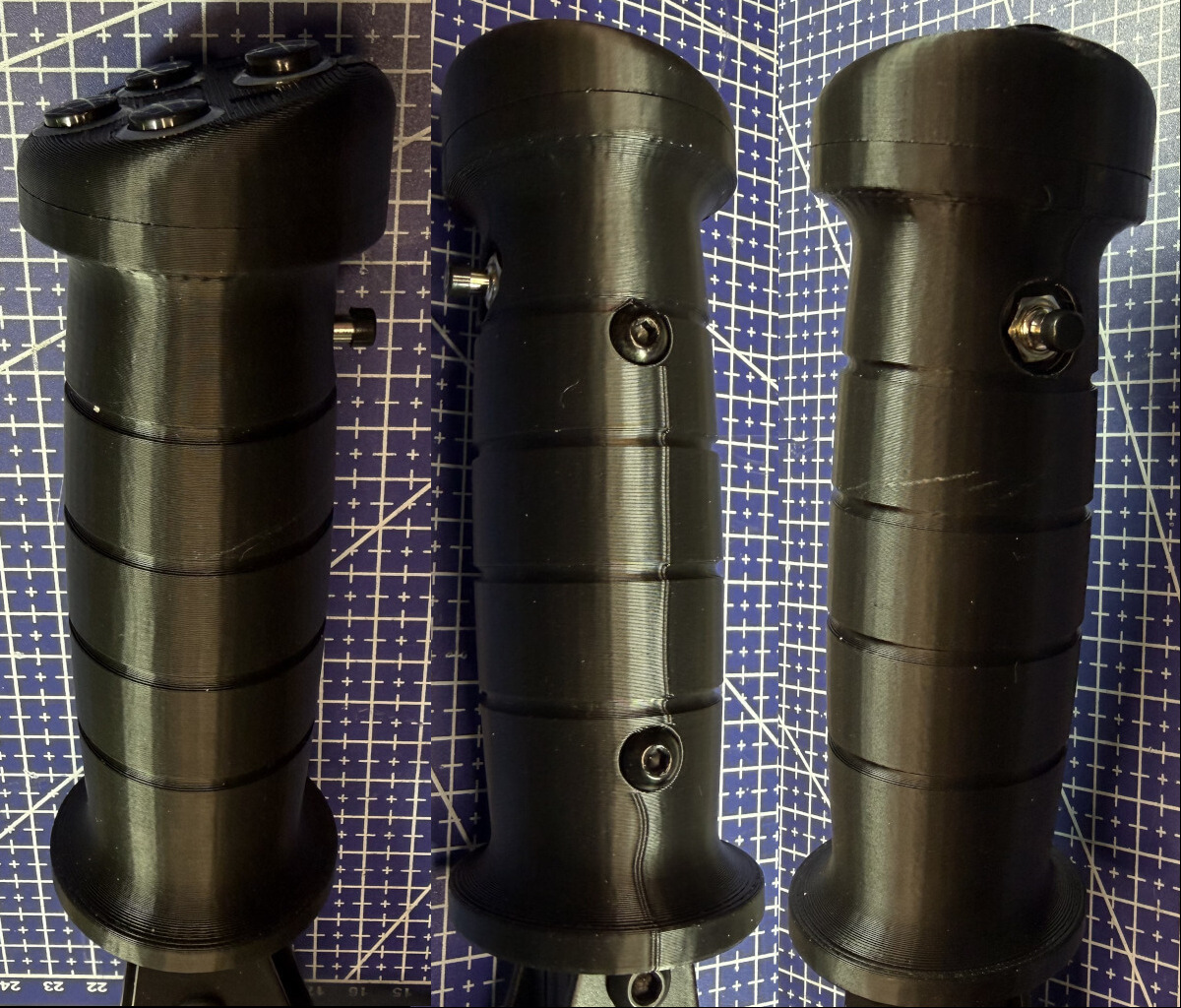

The handle is 3D printed.
It's based on the handle from the "PS 28 Cruiser" aircraft.
A 20x20mm channel is machined inside the handle, running almost the entire height of the handle.
A 20x20mm aluminum profile is inserted into this channel. This ensures the handle is extremely durable for use with FFBeast joysticks!


I can design and manufacture handles from other aircraft, depending on my capabilities.


Video of the FFBeast joystick with the "PS 28 Cruiser" handle installed - "PS 28 Cruiser"

ST-Link-V2 programmer with cable.

You may need this programmer to update the controller firmware if you cannot update the firmware via USB.


Video of using the ST-Link-V2 programmer - with the ODrive controller.
